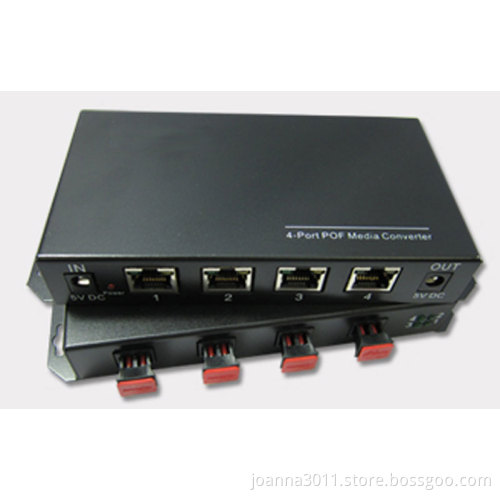

4-Port POF Converter Panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Key Features:

Terminate in seconds POF can be cut to length on site and terminated in seconds.
Inter operability enables the connection of any 10/100 copper Ethernet device to be
connected to an EoPOF network.
Space saving POF is one quarter of the size and one third of the weight of
CAT5-simplifying handling and ideal for congested ducts and cable trays.
Simple and safe certified eye safe RCLED light sources. Operation in the visible (red) region
simplifies debugging and fault detection activities.
Data Integrity EoPOF is immune to the effects of electrical noise, groud potential
variations and lightning induces voltage spikes on data lines.
Robust Designthe sturdy metal case protects your media converter from the industrial environment.

Network Ports	•4x100BaseFX Optolock POF Ports •4x10/100Base TX RJ-45 Ports
Standards Compliance	•IEEE 802.3i 10Base-T Ethernet •IEEE 802.3u 100Base-TX 100Base-FX •IEEE 802.3uxFull Duplex Flow Control
Switch Specifications	•Technology: Store and Forward •Frame Memory: 128KB •Address Table: 2048
Optical Characteristics	•Source Type: RCLED •Wavelength: 650nm nominal (Red) •Max.TX Output Power: -2.0 dBm •Min.TX Output Power: -8.5 dBm •Max. RX Sensitivity: -28.0 dBm •Min. RX Sensitivity: -24.0 dBm •Min Optical Link Budget: 15.5dBm •Max Distance: 70 (recommended & dependent on fiber)
Environmental Specifications	•Operating Temperature: 0C to 40C. •Storage Temperature: -20C to 85C. •Operating Humidity: 5%-90% RH non condensing
Power Specifications	•Input Voltage: DC 5V •Input Current (@DC 5V):0.5A
