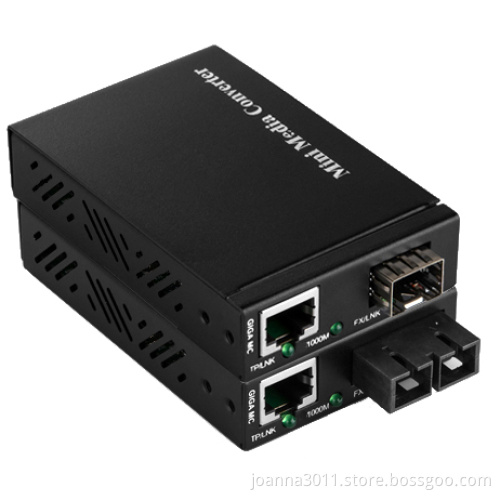

Mini 10/100/1000M Fiber Optic Media Converter

Get Latest Price

Payment Type:: T/T, Western Union

Incoterm:: EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000pcs/month
Payment Type:	T/T,Western Union
Incoterm:	EXW
Certificate:	CE.FCC.ISO9000.
Transportation:	Ocean,Land,Air

Product Description

Key Features:

-10/100/1000Base-TX UTP to 1000Base-FX Mini fiber optic media convertion

- Support IEEE802.3U, IEEE802.3z,

1000Base-TX/FX standards

-Choice of SC, LC, BiDi or other connectors for

multimode and singlemode

- DIP switch to set different configurations

- Compact package size

The mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc.

A DIP switch is placed at the bottom of the case. Depend on different configurations, the user can set the different operating mode (Force FX to 100M, pass through 9Kbit mode and LLCF, etc).

Technical Specifications:

Data Rates:

- 10/100/1000Mbps

(IEEE802.3U IEEE802.3z 1000Base-Tx)

- 1000Mbps (1000Base-FX) or

100Mbps (100Base-FX)

Input Power Requirements:

- Input voltage ......................................... DC 5-12V

- Power consume ............................ 3 Watts maximum

Environmental Conditions:

- Operating temperature ....................... -0℃ to 40℃

- Cooling ........................................ free air convection
