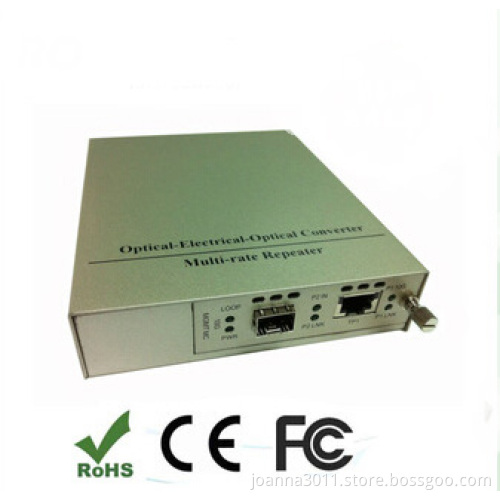

10G / 40G OEO With 3R Repeater and Loopback Test
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000pcs/month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | EXW |
| Certificate: | CE,FCC,RoHS,ISO9000 |
| Transportation: | Ocean,Land,Air |
Application:
media conversion and distance extension for 40G or 10G Ethernet links.
media conversion (multi-mode to single-mode) and link range extension. (The multi-mode QSFP may be used with MPO MM (40G) or with fan-out cables for quad 10G interfaces.)
Features:
Support 2U Rack(16 Slots) and independent use.
Support network management (Web SNMP, Console).
3R function.
Support Jumbo Frame.
Transparent Transpor and very low delay.
Support DMI function for QSFP fiber module.
Support 1*40G Mode and 4*10G Mode.
Support Loopback test function.
Support hot plugging.
Full State Led display.
Easy installation.
Technical Information:
| Performance Data | Technical Indexes |
| Equipment function | 3R Repeater |
| Protocols |
Multiple functions in one module: --40G converter/repeater --Quad 10G optical multiplexer 40G link interface --Ethernet/IEEE: 802.3ba 40GE-LR4 /SR4 10G interfaces: --9.95 - 11.35 Gbps |
| Access Type | 40G Ethernet , |
|
Network management information |
Card type information QSFP fiber module DMI function ( Temperature , Voltage , Optical power ) Link status detector Enable/Disabled Loopback test function Enable/Disable PRBS Generator and checker function |
| Interface Type | QSFP To/From QSFP |
| Transmission Distance | Up to QSFP module ( Max 10Km ) |
| power requirement |
Rack-mountable : AC 85 ~ 220V OR DC -48V Standalone: AC 220V OR -48V Power consumption: ≤8W |
| Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing ) |
| Dimension |
Card : 11.5mm ( W ) × 78mm ( D ) Standalone : 156mm ( W ) ×128mm ( D ) ×32mm ( H ) |
