12slot Networking Mini Media Converter Rack Redundant Power Supply

Get Latest Price

Incoterm:: EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000pcs/month
Incoterm:	EXW
Certificate:	CE,FCC,RoHS,ISO9000

Product Description

Quick Detai:

Suitable for standard 19 inch network rack
1U height, maximum 12 slots capacity
Supports several module type media converters
Supports redundant power supply modules
Supports hot-swappable operating
Two side LED indicators (front and rear)

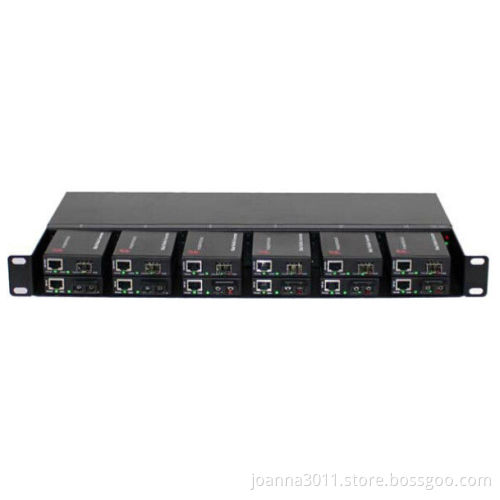

The 1U height 12 slots media converter rack mount chassis is specially designed for accommodating chassis-based mini Media Converters. It is a standard 19 inch 1U height rack mount chassis which can be mounted in the standard 19inch rack. The chassis lets you install multiple mini media converters in an equipment rack together with the network devices. This provides for space saving, and the cabling will look neat. The chassis works with its own universal AC/DC or DC/DC power supply. For maximum power availability, an optional redundant power supply is available for installation in the chassis. The configuration of active/standby power supply ensures uninterruptible operation of the system.

Technical Specifications:

Power Requirements:
- Input voltage ....................	AC 100-240V 50/60Hz
or/and DC 36-72V (48V typical)
- Output voltage .........................................	DC 12V
- Power output ............................	36 Watts maximum
Environmental Conditions:
- Operating temperature .......................	-0℃ to 50℃
- Cooling .........................................	brushless DC fan
- Storage temperature ......................	-20℃ to +70℃
