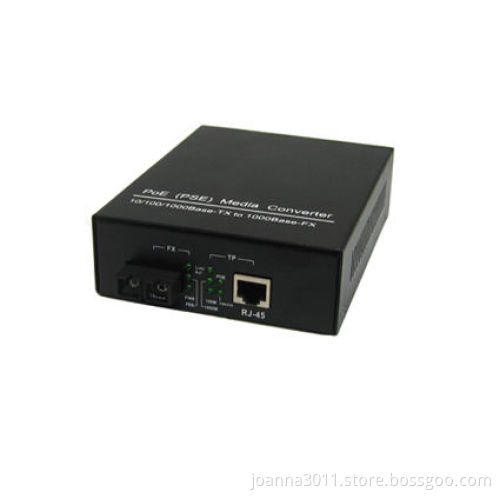

Mini Fiber Optic Media Converter
- Payment Type:
- T/T, Western Union
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000pcs/month |
| Payment Type: | T/T,Western Union |
| Certificate: | CE,FCC,RoHS,ISO9000 |
| Transportation: | Ocean,Land,Air |
Quick Details:
- Multi-mode 850nm / 1310nm 10 / 100M Fiber Optic Media Converter 1-Fx to 1 RJ45
- Auto-adaptation 10Mbps and 100Mbps, convenient for network updating.
- With low-temperature-rise chip, no need of cooling system, realization of flow control, decrease of broadcast storm.
- With famous brand optical-electronic-integration module providing excellent optical and electrical properties to ensurereliable data transmission and long working life ﹡ Speed 10/100M.
- Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.
- Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
- Single RJ-45 electrical port NIC/HUB, auto cross-identification, link to computer network cards or switches or HUB.
- Supporting the switches to choose between 10/100Mbps store-and forward and straight-through transmission pattern(distinct).
- Supporting 1600byte super data packet transmission.
- dynamic data transmission and full/halfduplex, data rate.
- With more than 50, 000 hours MTBF, complying with telecom operating standard.
- Ultra low power dissipation(< 2.5W, Input:AC140 ~ 260V), low heat, long-time stable work.
- Supporting choosing optical ports from dual fiber(MM), dual fiber(SM), single fiber(SM).
Technical Parameter Description:
|
Technical Parameter: |
|
|
Access Method: |
10/100Mbps |
|
Standard: |
IEEE802.3 , IEEE802.3u, IEEE802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1d |
|
Wavelength: |
850nm/1310nm/1550nm |
|
Distance: |
Dual Fiber MM : 2Km Dual Fiber SM : 10/20/30/50/80Km Single Fiber SM : 20/40/60Km CAT5 : 100m |
|
Conversion Method: |
Media Conversion, Store-and-Forward/straight through |
|
MAC Address Table: |
1 K |
|
Buffer Size: |
1Mbit |
|
Flow Control: |
Duplex : flow control ; Half duplex : back pressure |
|
Time Delay: |
Store-and-Forward : 9.6us , Straight-through : 0.9us |
|
BER: |
<1/1000000000 |
|
LED Indicator Lamps: |
TP 100 , FX 100 , FX LINK/ACT, TP LINK/ACT, , FDX, POWER |
|
Power Supply: |
DC5V 1A (external power) , AC220 0.5A /DC-48( internal power ) |
|
Power Dissipation: |
<2.5W |
|
Operating Temperature: |
0 ~ 50 ℃ |
|
Humidity: |
5%~90% |
|
Storage Temperature: |
-40~ 70 ℃ |
|
Dimension: |
25mm (H)* 70mm (W)* 93mm (D) |
