Quick Details:

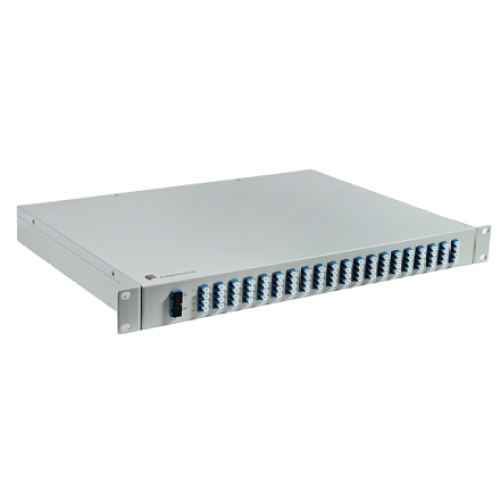

This component is designed for use within the C -band release of DWDM system. AWG device uses thermal-type thermal arrayed waveguide grating module with a unique package design is based on a silicon substrate planar waveguide optical path (PLC) grating technology, the key modules, reduce power consumption, the Ad Hoc Working Group kit, use reliable thermal plastic , low thermal conductivity and precise working temperature control, accurate channel coupling, low insertion loss, high channel isolation and high stability.

Product Features:

• Channel spacing 100GHZ (0.8 nm) up to 48 channels can be multiplexed;
• Low insertion loss, insertion loss ≤5dB, typically 4.5dB
• High channel isolation, adjacent isolation ≥25dB; non-adjacent isolation ≥35dB
• High stability, dual hot-swappable power supply, 1 +1 protection;
• Perfect indicator status;

Performance Parameters

Parameters			Min	Typ	Max	Units
Number of Channels			40
Number Channel Spacing			100			GHz
Cha. Center Wavelength			C -band			nm
Clear Channel Passband			±0.1			nm
Wavelength Stability			±0.05			nm
-1 dB Channel Bandwidth			0.4			nm
-3 dB Channel Bandwidth			0.6			nm
Optical Insertion Loss at ITU grid				4.5	6.0	dB
Adjacent Channel Isolation		Demux	25			dB
		Mux	18
Non-Adjacent,Channel Isolation		Demux	32			dB
		Mux	26
Insertion Loss Uniformity			1.5			dB
Directivity(Mux Only)			40			dB
Insertion Loss Ripple			0.5			dB
Optical Return loss			40			dB
PDL/Polarization Dependent Loss in Clear Channel Band				0.3	0.5	dB
Polarization Mode Dispersion			0.5			ps
Maximum Optical Power			24			dBm
Environment	Operating Temperature		-5℃~+75℃
	Storage Temperature		-40℃~85℃
	Relative humidity		5% ~ 95% Non-condensing
Power supply			180V~240V/AC,-36V~-72V/DC
Safety and EMC			compliance with FCC, UL, CE, TUV, CSA
Power Consumption			≤25W
Package Dimension (mm)			440(W)× 44(H)×340(D)
