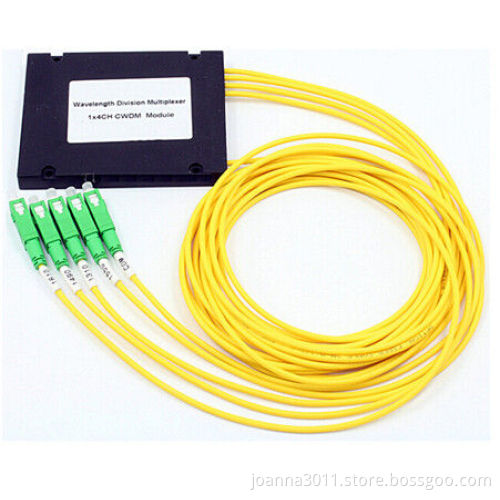

Product Description:

4Ch CWDM MUX/DEMUX demonstrate low loss and reliable performance. it show broad passbands and high isolation, making them ideal for operation with inexpensive, with uncooled lasers. They feature up to 4 dispersion channels, thereby enabling high capacity, low cost products for the CATV and metro/access markets. For this 4Ch CWDM MUX/DEMUX Can be packed into 1U Rack for easy operation, also can order seperately.

Applications

• Access networks
• Metro WDM systems

Features

• Low insertion loss
• High channel isolation
• Low polarization dependent loss
• High Stability and reliability
• Enterprise networks

Specifications:

Item	Unit	Parameters				Note
Wavelength range	nm	1460~1620		1260~1620
Channel centers (ITU or ITU+1)	nm	1470/1490-1610 or 1471/1491-1611		1270/1290-1610 or 1271/1291-1611
Channels	ch	4	8	4	8
Passband	nm	≥+/-7
Passband ripple	dB	≤0.5
Channel insertion loss	dB	2.0	2.8	2.0	3.0
Optional express insertion loss	dB	1.8	2.6	1.8	2.8
Isolation (adjacent channel)	dB	≥30
Isolation (non-adjacent channel)	dB	≥50
Polarization dependent loss	dB	≤0.2
Polarization mode dispersion	ps	≤0.2
Directivity	dB	≥50
Return loss	dB	≥45
Optical power handling	mW	≤500
Operating temperature range	0C	-5 to 70 0C
Storage temperature range	0C	-40 to +85 0C
Fiber type		SMF-28e
Connector Type
Package dimensions (L x W x H)	mm	100 x 80 x 10				ABS
