100G SOA

100G SOA

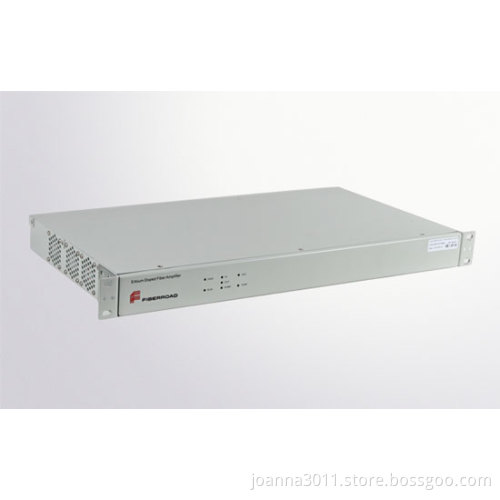

Fiberroad Semiconductor Optical Amplifier products provide the amplification around 1310nm. It can be used in the10G/40G/100G system, suit for system design conveniently. Products are divided into 2 * 2,4 * 4 and 8 * 8 three kinds, respectively, to achieve 2-way, 4-way and 8-way 1310nm 100G optical signal amplification. It provides output power up to be 10dBm.

Key Features

• O-band, 1260~1340;
• Power up to 10dBm;
• 3 work modes, ACC, APC and AGC,for constant pump current, output power or gain are selectable;
• DB9 port for RS232 communication and RJ45 port for SNMP function
• 220VAC or -48VDC dual power supply, optional.
