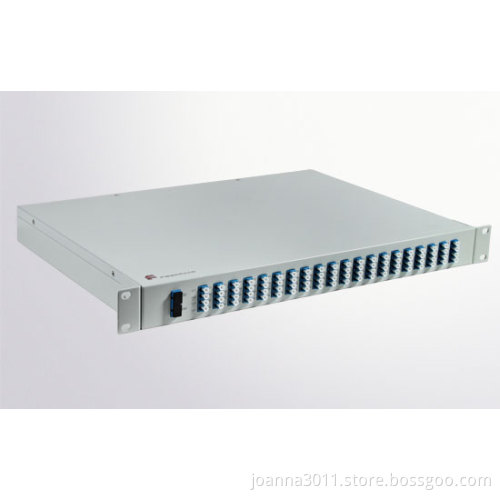

TAWG(Thermal Arrayed Waveguide Grating)
This document presents the generic specification for the 40-channel 100GHz MUX/DEMUX component supplied for use in DWDM system.
This component is designed for use within the C -band release of DWDM system. TAWG(Thermal Arrayed Waveguide Grating) device uses thermal-type thermal arrayed waveguide grating module with a unique package design is based on a silicon substrate planar waveguide optical path (PLC) grating technology, the key modules, reduce power consumption, the Ad Hoc Working Group kit, use reliable thermal plastic , low thermal conductivity and precise working temperature control, accurate channel coupling, low insertion loss, high channel isolation and high stability.
- Channel spacing 100GHZ (0.8 nm) up to 48 channels can be multiplexed
- Low insertion loss, insertion loss ≤5dB,typically 4.5dB
- High channel isolation, adjacent isolation ≥25dB, non-adjacent isolation ≥35dB
- High stability, dual hot-swappable power supply,1 +1 protection
- Perfect indicator status
- Powerful network management capabilities to support SNMP, Web, telnet network management, network management GUI-based graphical interface, friendly interface
