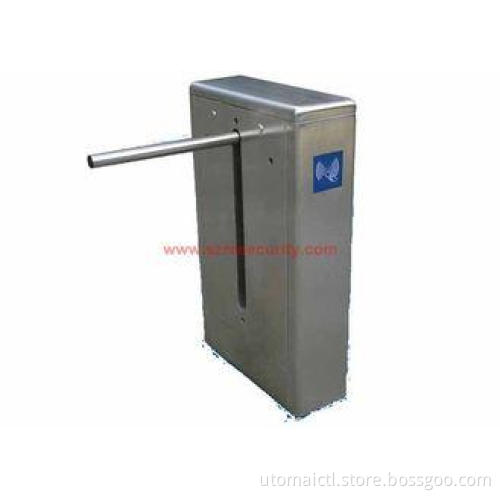

Station Drop arm Turnstile With Bi-direction Card Swipping

Sing-pole turnstiles

Bridge type with trapezium leg, and without covered plate

Framework 304 grade stainless steel

Size: 1,400 x 162 x 1000mm

Weight: 75kg

Channel width: ≤600mm

Arm length: 510 mm

Machine center: imported germanic Technological motor

Logic voltage: 24V

Power: 20W

Working mode one way/double way (optional)

Interface standard port-RS485

Power voltage: 220V AC (10%more or less), 50Hz

Passing efficiency 30 persons/m

Two-side card reading

LED light direction guide (chooseable)

Clamping avoid

The pole automatically falls down when eletricity is cut down

The turnstiles provides a basic tripod to control access smoothly and effectively by basic operation.

And also prvent illegal in and out.

The machine is well in design, rustproof, durable and can resist external destroy.
