100GHz Dense Wavelength Division Multiplexer(DWDM Module 4,8,16 Channel)
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 2000pcs |
| Supply Ability: | 2000pcs |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | CE,ROSE |
| Transportation: | Air |

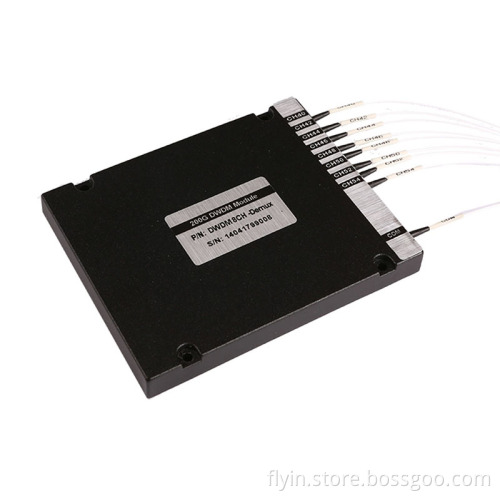

Flyin Optronics` 100GHz dense wavelength division multiplexer (DWDM module) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Applications
Channel Add/Drop
DWDM Network
Wavlength Routing
Fiber Optical Amplifier
CATV fiberoptic System
Performance Specifications
|
Parameter |
4 Channel |
8 Channel |
16 Channel |
||||||
|
Mux |
Demux |
Mux |
Demux |
Mux |
Demux |
||||
|
Channel Wavelength (nm) |
ITU 100GHz Grid |
||||||||
|
Center wavelength Accuracy (nm) |
0.1 |
||||||||
|
Channel Spacing (nm) |
100 |
||||||||
|
Channel Passband (-0.5dB bandwidth (nm) |
0.25 |
||||||||
|
Insertion Loss (dB) |
1.8 |
3.7 |
5. 5 |
||||||
|
Channel Uniformity (dB) |
0.6 |
1.0 |
1.5 |
||||||
|
Channel Ripple (dB) |
0.3 |
||||||||
|
Isolation (dB) |
Adjacent |
N/A |
30 |
N/A |
30 |
N/A |
30 |
||
|
Non-adjacent |
N/A |
40 |
N/A |
40 |
N/A |
40 |
|||
|
Inertion Loss Temperature Sensitivity (dB) |
0.005 |
||||||||
|
Wavelength Temperature Shifting (nm) |
0.002 |
||||||||
|
Polarization Dependent Loss (dB) |
0.1 |
0.1 |
0.15 |
||||||
|
Polarization Mode Dispersion |
0.1 |
||||||||
|
Directivity |
50 |
||||||||
|
Return Loss |
45 |
||||||||
|
Maximum Power Handling |
300 |
||||||||
|
Opterating Temperature |
-5 to 75 |
||||||||
|
Storage Temperature |
-40 to 85 |
||||||||
|
Package dimension |
L100 x W80 x H10 |
L142 x W102 x H14.5 |
|||||||
