Die Casting Aluminum 512 * 512mm P6.4 1R1G1B 680 Million Re

Die Casting Aluminum 512 * 512mm P6.4 1R1G1B 680 Million Rental LED Display For Indoor

Model:DI-R6.4i-1
Pixel Patch:6.4mm

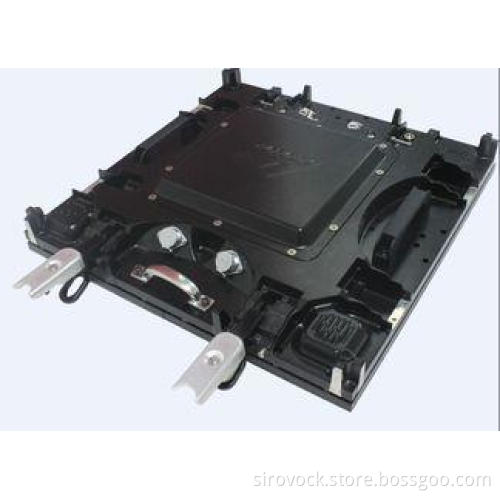

Features of die-cast aluminum cabinet

(1) Light. Cabinet size of 512*512mm and light weight of only 12.5 kg enable one-person installation easier and simpler, save installation time. But traditional LED screen is over 25 Kg with the same size.
(2) Thin.Adopting the die-casting aluminum, it is high strength, high tenacity, high accuracy and not easy to distort. The thickness of our cabinet is 87mm, the traditonal cabinet is 160mm.
(3) Quick. Adopting quick locking mechanism on the Up, down, left and right connection. Tighten two cabinet up with pull and turn the two handles by 90 degrees. You can install one cabinet with high accuracy in 10 seconds. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly.
(4) Easy. Adopting modular design, assembled cabinet can install and disassembly quickly and easily. It is easy to maintenance.
(5) Compatible. New structure design, can satisfy hoisting, overstow, indoor and outdoor used requirements. Cabinet simplification, and various pixel pitch of indoor and outdoor mudules such like P4, P5.33, P6.4, P8, P10.66, P12.8, P16 are compatible.
(6) Low. Has excellent heat dissipation design and performance. it is low noise and doesn't need external fan or air-condition. With the features of lighweight and low power consumption, it can reduce the labor cost of installation and operating costs.
