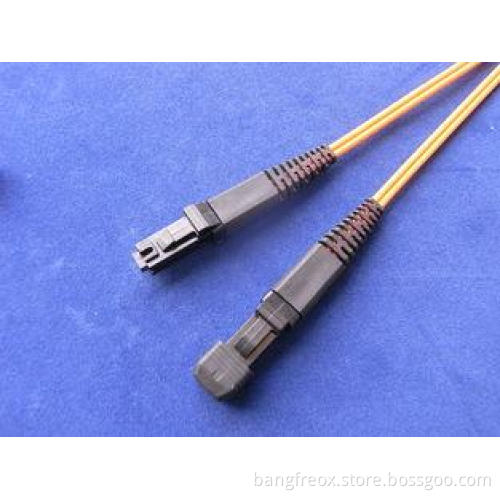

Small Form MT-RJ Fiber Optic Connector for Video and Military Active Device Termination
The MTRJ connector has an improved version of RJ-45 type plug. This latching mechanism ensure easy to use. MTRJ adapter with approximately same space as a simplex SC adapter
Feature:
Small form connector
High quality thermostatic ferrule
Side pulling proof
Compact size
Availablity:
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Clips are available for SC and LC duplex connectors
Housing kits without ferrule are available.
-PC and APC are available
Mechanical Drawings:
Specifications:
|
Item |
Single mode |
Multi mode |
|
Insertion loss |
PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB |
＜0.3dB |
|
Return loss |
PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB |
＞25dB |
|
Insert-pull test |
1000(times) ＜0.2dB |
|
|
Operating temperature |
-40℃~ +80℃ |
|
|
Ceramic ferrule spec |
125.5um concentricity deviations: ＜1um |
127um concentricity deviations: ＜3um |
|
Suitable fiber |
PC/APC(9/125um) |
PC(50/125um, 62.5/125um) |
Application:
