Extrusion Aluminum PH5 Rental LED Screen, Indoor Video led
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Extrusion Aluminum PH5 Rental LED Screen, Indoor Video led billboards
Quick Detail:
1, Extrusion aluminum LED cabinet;
2. LED Module Size: 240mm x 240mm;
3. LED Cabinet Size: 480mm x 480mm x 65cm;
4, LED Source: Epistar SMD2121
5, Power Supply: Ulra slim YHY and G energy;
6, Cabinet Weight: 8kg/cabinet
Description:
1, Extursion aluminum indoor rental LED screens cabinet is of lighter weight;
2, Stable structure makes it un-damaged under frequent shipment from one site to next;
3, P5 Rental LED Screens utilize full black color LED chips;
4, High resolution: P5 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution;
5, P5 indoor LED display screens rental is of light weight for hanging up installation;
6, Good heat disppitation,no fans design, noiseless.
Applications:

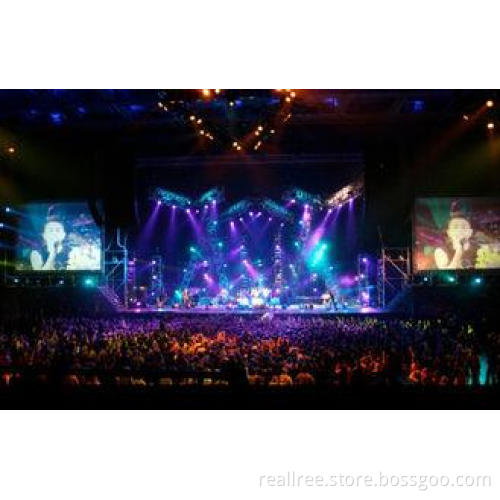

Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 5 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD2121 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 48 x 48 |
| Module pixel | 2304 |
| Module size (mm) | 240 x 240 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 480 x 480 x 85 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Die Casting Aluminum |
| Cabinet weight (kg) | 6.5kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 40000 |
| Brightness(cd/m2) | ≥1500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥4m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/10 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 4000:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20~+60 |
| Stored temperature (ºC) | -30~+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47~63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, Extrusion aluminum cabinet main feature is ultra light weight at 6.5kg per cabinet, making P5 indoor rental LED displays suit for large size rental use;
2, High contrast ratio:Contrast ratio up to 4000:1 to react real color of the content;
3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
4, Large viewing angle at 140 degree horizontal and vertical;
5, Full black color LED chips enable better uniform in brightness and color;
6, P5 indoor rental LED wall is being widely used for large size rental projects for its rental ED display structure and cost effective advantages.
