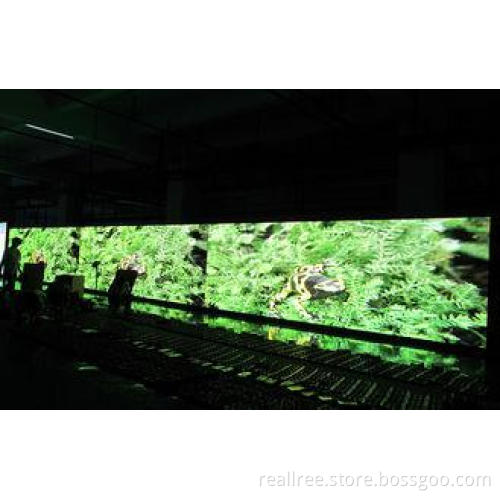

Indoor Commercial Stage Rental Led Screen SMD Full Color led display
Quick Detail:
1, Die casting aluminum rental LED screens structure;
2, LED Source: SMD3528
3, Module: 320mm x 320mm;
4. Cabinet: 640mm x 640mm x 90cm;
5. Hanging up on truss and standing on floor;
5. Four LED rental cabinets packed into one flight case for movable rental events use;
Description:
1, P5.926 indoor die casting aluminum rental LED display is widely used for concerts,events,TV studios etc.
2, Ultra light weight: Utilizing die casting aluminum LED cabinets;
3, Stable quality: Die casting aluminum LED display is of high quality for frequent movement from one site to next;
4, Ultra slim: Rental LED display is designed at 65mm thickness;
5, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;
6, Easy handling: With ultra light weight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;
Applications:
Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 5.926 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD3528 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 54 x 54 |
| Module pixel | 2916 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 640 x 640 x 90 |
| Cabinet resolution (pixels) | 108 x 108 |
| Cabinet pixels (pixels) | 11664 |
| Cabinet material | Die Casting Aluminum |
| Cabinet weight (kg) | 10kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 28476 |
| Brightness(cd/m2) | ≥1500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥5m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/8 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20~+60 |
| Stored temperature (ºC) | -30~+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47~63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, High density: about 28476 pixel pitches per square meters;
2, Contrast ratio up to 4000:1 to react real color of the content;
3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
4, SMD3528 LED chips, large viewing angle at 140 degree horizontal and vertical;
5, P5.926 ultra slim indoor rental LED screens is being widely choose for its rental features.
6, P5.926 Rental LED Screens die casting aluminum structure makes it quite a hot choose for indoor rental LED displays project.
