Ultra thin P10 Outdoor Rental LED Display as Scoreboard LED Screen
Quick Detail:
1, LED Chip: Epistar;
2, IC: MBI5020;
3, Power Supply: YHY ultra thin model;
4, Control System: Linsn 802;
5, Video Processor: LVP603S;
6, Cabinet: Die casting aluminum cabinet material with hanging up and on stand structure.
Description:
1, The P10 outdoor rental LED display is used in concerts;
2, This P10 die casting aluminum outdoor rental LED screen is used in road shows;
3, The ultra slim rental LED wall is used in musical events;

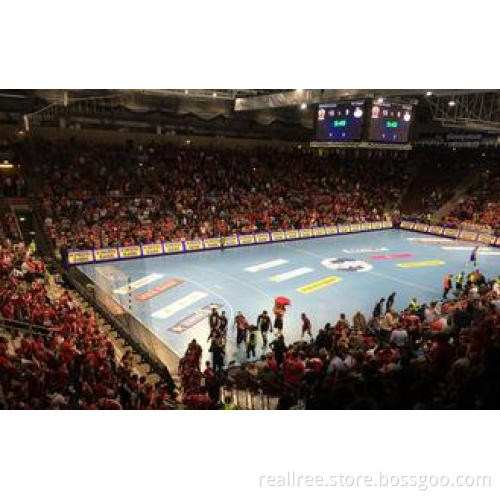

4, High refresh frequency guarantee P10 ultra thin outdoor rental LED display capable for scoreboard use in stadium;
5, Packed into flight case, convenient movment from one site to next;
6, Outdoor rental LED display is being use widely around the world for multi rental use, bring good revenue to intestors.
Applications:
Concerts
TV Studios
Private Parties
Fashion Shows
Product Launches
Press Conferences
Political Gatherings
Programe Live Broadcast
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 10 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 32 |
| Module pixel | 1024 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 640 x 640 x 90 |
| Cabinet resolution (pixels) | 64 x 64 |
| Cabinet pixels (pixels) | 4096 |
| Cabinet material | Aluminum |
| Cabinet weight (kg) | 12.5kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 10000 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥2800 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20~+60 |
| Stored temperature (ºC) | -30~+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47~63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;
2. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;
3. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;
4. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;
5. Reasonable price: Profit back to customer for long term mutual development cooperation;
