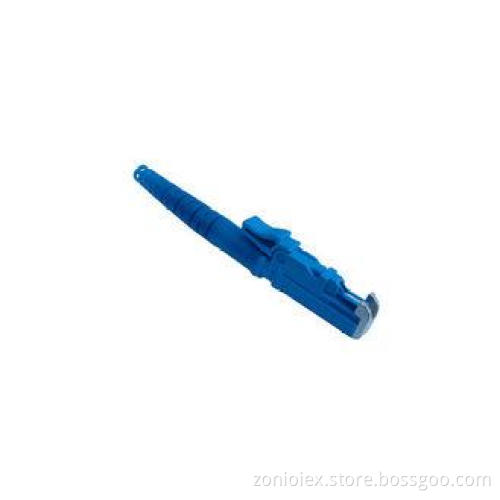

E2000 PC / APC SM Fiber Optics Connector Environmental FTTH
The E2000 connector has a push-pull coupling mechanism, with an automatic metal shutter in the connector and adapter as dust and laser beam protection One-piece design for easy and quick termination, used for high safety and high power applications.
Feature:
- LowIL&High RL
- Latched push-pull operation
- High quality ceramic Ferrule
- Automatic metal shutter
Specification:
|
Connector Type |
Insertion Loss |
Return Loss |
Repeatability (500 Mating) |
Exchangeability |
|
E2000/UPC Single mode |
≤ 0.4dB |
50dB |
≤ 0.2dB |
≤ 0.2dB |
|
E2000/APC Single mode |
≤ 0.4dB |
60dB |
≤ 0.2dB |
≤ 0.2dB |
|
E2000 Multimode |
≤ 0.3dB |
- |
≤ 0.2dB |
≤ 0.2dB |
Application
1. CATV, metro test equipment; FTTH;
2. Telecommunication networks;
3. Local area networks (LAN);
4. Wide area networks (WAN);
5. Premise installations;
6. Data processing networks;
7. Video and military active device termination.
8. Optical Distribution Frame
9. Optical Network Equipments
