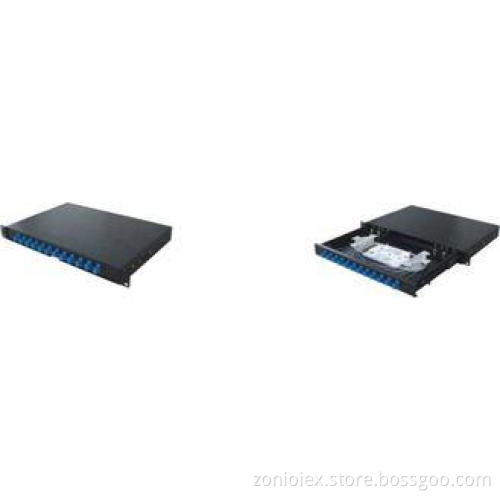

19'' standard structure SC Fiber Optic Patch Panel applicable in the termination
Description:
· Applicable in the termination and
· 19'' standard structure, sliding design, rack mounted
· Suitable for FC, SC, ST, LC adapters
Order information
|
Type |
Dimension(mm) |
Max capacity(cores) |
Remark |
|
GPZ/RM-CL-SC12 |
430*300*1U |
12 |
Cold rolled steel sheet, with electrostatic spraying, suitable for FC, SC, ST, LC adapters. |
|
GPZ/RM-CL-FC24 |
24 |
||
|
GPZ/RM-CL-2SC24 |
48 |
||
|
GPZ/RM-CL-FC48 |
430*300*2U |
48 |
Packing information
|
Type |
Inner carton size (mm) |
Weight (kg) |
Packing size (mm) |
Weight (kg) |
No./ carton |
|
GPZ/RM-CL-SC12 |
465*330*75 |
5.5 kg |
485*420*350 |
29.0 kg |
5 |
|
GPZ/RM-CL-FC24 |
|||||
|
GPZ/RM-CL-2SC24 |
|||||
|
GPZ/RM-CL-FC24 |
475*335*130 |
6.2kg |
500*355*550 |
26.3kg |
4 |
