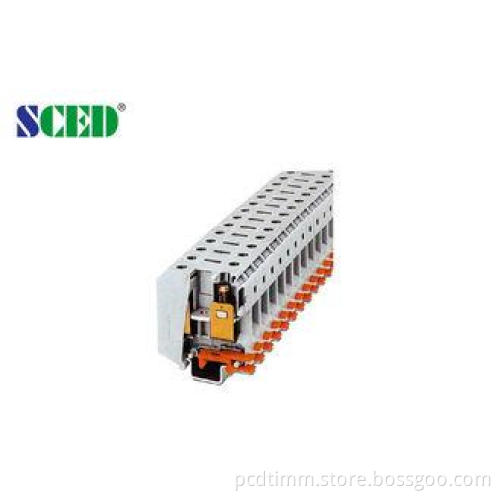

20.0mm Din Rail Mounted Terminal Blocks , High Current PCB Terminal Block 600V 150A
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
Detailed product Description:
Terminal Width: 20.0mm, 600V 150A, AWG:C, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
How to order:
Parameter and Drawing Specifications:
Description Color | Type |
Terminal Grey | TR-H50 |
|
|
| FBI 2-20 Imax: 150A |
| EB 10-15 Imax:110A |
|
|
|
|
Zack Strip White | ZB10 |
Screwdriver | SZS 1.2×8.0 |
Rail Material | aluminum |
Dimensions mm | 20/70.5 |
Height (U35: 7.5/U35: 15G 32) mm | 83.5/81.5 |
Screw / Torque Nm | M6 / 6-8 |
Stripping Length mm | 24 |
IEC Technical Data |
|
Max. Load Current / Cross Section A / mm2 | 150 / 150 |
Rated Surge Voltage / Contamination Class KV / - | 8 / 3 |
Surge Voltage Category | Ⅲ |
End Cover Grey
Fixed Bridge
Insertion Bridge
Separating Plate
Partition Plate
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
