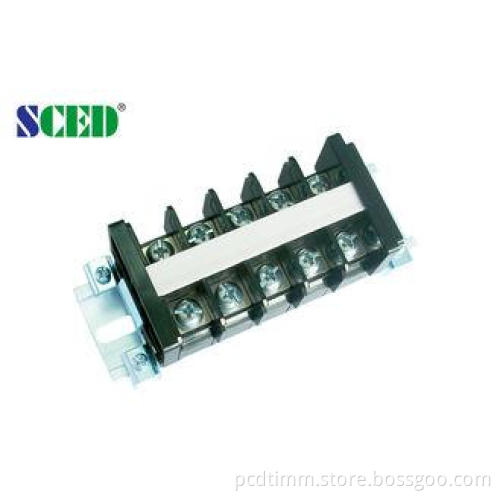

600V 60A Rail Mounted Terminal Block , 14.00mm Electrical T
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|
600V 60A Rail Mounted Terminal Block, 14.00mm Electrical Terminal Blocks 4-20 AWG, any pole available,
High Current Terminal connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 60 | 600 / 60 |
|
Wire Range AWG | 4-20 | 4-20 |
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 /60 | 1000 / 60 | 1000 / 60 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 14 | ||
Material |
| ||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 12-15 | ||
Screw Torque mm | M6 / 18-22 | ||
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
