AWG 24 - 10 6.2mm Single Level Compact Din Rail Mount Termi
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Detailed product Description:

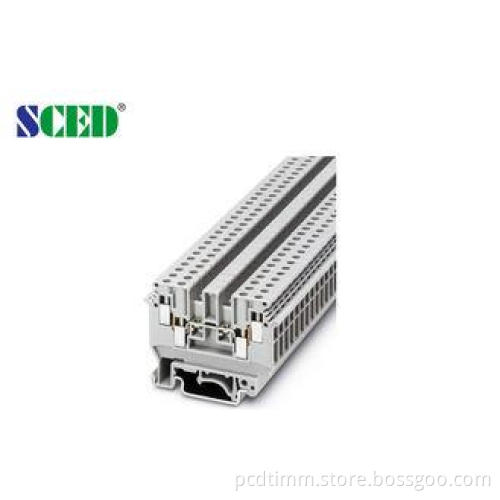

AWG 24-10 6.2mm Single Level Compact Din Rail Mount Terminal Blocks 300V 32A, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
How to order:
Parameter and Drawing Specifications:
Description Color | Type |
Terminal Grey | TR-4N |
| D-TR-4 |
| FBRI 10-6 Imax: 34A |
| EB 10-6 Imax: 34A |
| TS-KK3 |
|
|
Zack Strip White | ZB6 |
Screwdriver | SZS0.6×3.5 |
Rail Material | aluminum |
Dimensions mm | 6.2/63.5/1.5 |
Height (U35: 7.5/U35: 15G 32) mm | 47/54.5/52.5 |
Screw / Torque Nm | M3 / 0.6-0.8 |
Stripping Length mm | 8 |
IEC Technical Data |
|
Max. Load Current / Cross Section A / mm2 | 32/4 |
Rated Surge Voltage / Contamination Class KV / - | 6 / 3 |
Surge Voltage Category | Ⅲ |
End Cover Grey
Fixed Bridge
Insertion Bridge
Separating Plate
Partition Plate
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
