25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Righ
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|
Parameter and Drawing Specifications:
|
Description Color |
Type |
|
Terminal Grey |
TR-H95 |
|
|
|
|
|
EB 2-25/TR-H Imax: 232A |
|
|
|
|
|
|
|
|
|
|
Zack Strip White |
ZB10 |
|
Screwdriver |
|
|
Rail Material |
aluminum |
|
Dimensions mm |
25/83 |
|
Height (U35: 7.5/U35: 15G 32) mm |
97.5/95.5 |
|
Screw / Torque Nm |
M8 / 15-20 |
|
Stripping Length mm |
33 |
|
IEC Technical Data |
|
|
Max. Load Current / Cross Section A / mm2 |
232 / 95 |
|
Rated Surge Voltage / Contamination Class KV / - |
8 / 3 |
|
Surge Voltage Category |
Ⅲ |
End Cover Grey
Fixed Bridge
Insertion Bridge
Separating Plate
Partition Plate
Detailed product Description:

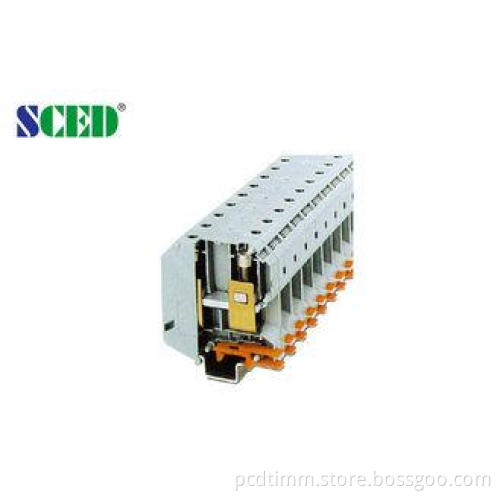

Terminal Width: 25.0mm, 600V 230A, AWG:2-4/0, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
How to order:
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
