Basic Info

Place of Origin:	Shenzhen, China

Product Description

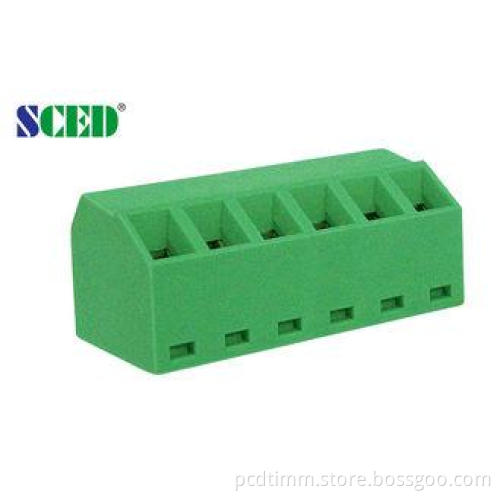

300V 10A Industrial PCB Terminal Block Eurostyle 2 Pin - 28 Pin

Detailed product Description:

Type:	PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series	Pitch:	3.81mm
Rated Voltage:	300V	Rated Current:	10A
Standard Color:	Green, other color is available	Number Of Contacts:	2P-28P
Wire Range:	16-24AWG	Applications:	PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc.

Pitch 3.81mm, 300V 10A, 2P-28P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10
Wire Range AWG	16-24
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 10	200 / 10	400 / 10
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm²	1.0
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.2
Stripping Length mm	4-5
Screw / Torque / lbf.in	M2 / 1.8-2.0
