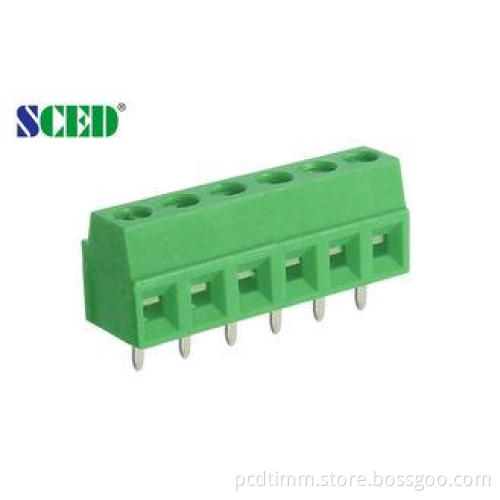

Power Distribution PCB Terminal Block , Pitch 3.5mm Terminal Blocks
Detailed product Description:
PCB Terminal blocks, Pitch 3.5mm, 300V 10A, 2P-28P, PCB screw terminal blocks, Euro type Raising series
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/10 |
|
|
|
Wire Range AWG |
16-24 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
160 / 10 |
200 / 10 |
400 / 10 |
|
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity mm2 |
1.0 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.3 |
||
|
Stripping Length mm |
4-5 |
||
|
Screw / Torque / lbf.in |
M2 / 1.8-2.0 |
||
Drawing Specifications:
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers' demand
