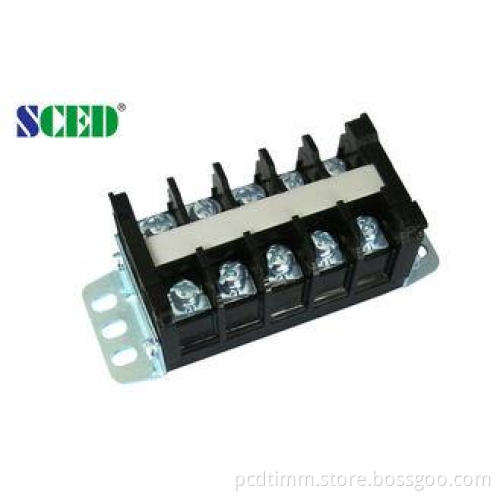

Electric Power High Current Terminal Block Pitch 14.00mm 40A 2Pin - 28Pin
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 40 |
600 / 40 |
|
|
Wire Range AWG |
8-22 |
8-22 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 40 |
1000 / 40 |
1000 / 40 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
8 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
10-12 |
||
|
Screw / Torque / lbf.in |
M5 / 14-18 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
