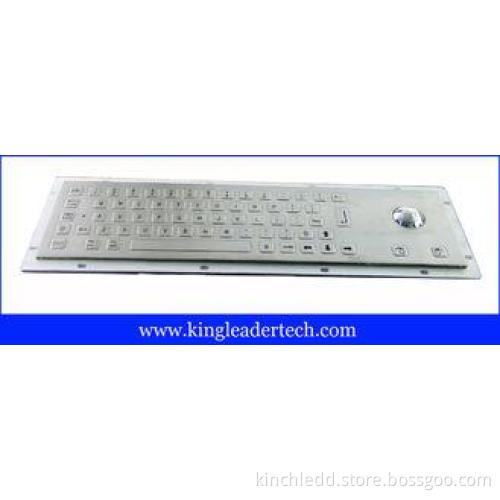

Rugged 65 keys industrial kiosk keyboard with short keys and trackball MKB-64FA-TB
Rugged stainless steel, water-proof, vandal-proof, panel-mount keyboard with 64 customizable flat keys and integrated trackball
Key Features:
1) 65 keys, with integrated trackball, panel mount
2) Flat/non-protruding short travel(0.45mm)keys, excellent tactile feel;
3) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places;
4) Built from stainless steel, high vandal-proof.
5) Dust-proof and liquid-proof, meet IP65 requirement
6) PS/2 or USB interface, easy to plug into computers directly
7) Customizable
|
Specifications |
|
|
Material |
Front panel & Keys: Brushed stainless steel |
|
Back panel: Aluminum alloy |
|
|
Key cap: Flat/non-protruding short travel key (0.45mm), raised Braille or sunk etched graphics |
|
|
Trackball: Stainless steel trackball (Dia: 38mm) |
|
|
Electrical Data |
Power supply voltage: DC 5 V 5% |
|
Current rating: 20 mA |
|
|
Interface: USB or PS2 |
|
|
EMC compliant. |
|
|
FCC: Part 15, class B |
|
|
Safety: EN 60950, CE compliant |
|
|
Environmental Characteristics |
Operating temperature: -20 C to + 60 C |
|
Storage temperature: - 40 C to + 80 C |
|
|
Saline mist: 96 hours, IEC 60512-6 |
|
|
Damp heat test at + 40 C: 21 days, IEC 60512-6 |
|
|
Dry heat test at + 85 C: 10 days, IEC 60512-6 |
|
|
Mechanical Data |
Actuation force for key:150±15g |
|
Key travel: 0.45mm |
|
|
Lifetime (cycles): Min 5, 000, 000 actuations |
|
|
Sealing protection: IP65/NEMA4X from the front |
|
|
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 |
|
|
Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4 |
|
|
Operation system |
PS2: Win NT4, 98SE, 98ME, 2000, XP |
|
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX |
|
|
Weight and Dimension |
Weight: 1.80kg |
|
Dimension: |
|
