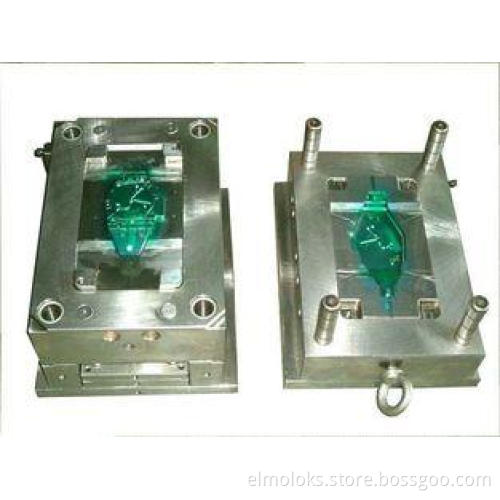

S136 P20 S50C Custom Injection Mould / Cold Runner Mold With Single-cavity

Quick Detail:

1. Shaping Mode: Plastic Injection Mould;

2. Mould Material: Quenched S136;

3. Runner System: Cold Runner;

4. Cavity Layout: Single;

5.Raw Material: ABS;

6. Tolerance: ±0.02mm

Description:

Place of Origin	Dong Guan City, China
Core Business	Plastic mould making and injection molding service
Design software	UG, ProE, CAD
Maximum mould size	2,0001,5001,000mm
Mold build capability	Up to 20Ton
Clamp forces	60Tons~400Tons
Cavity	Single-cavity, multi-cavity
Certificate	ISO9001:2008 and SGS
Mould material	718H, P20, NAK80, S316, S50C
Raw Material	ABS, PP, PC, PVC, POM,
Mould Structure	Insert Mould, Over Mould, Double Color Mould etc
Mould base	HASCO,DME,LKM standard
Processing Craft	Milling, Grinding, Drilling, Engraving, EDM, Wire Cutting, Polishing
Tolerance	±0.02mm
Gate type	Cold runner, Hot runner
Appearance finished	EDM, High polish; Mirror polishing, Texture/Graining
Mould Life	30,000 to 1,000,000 shots
Hardness of steel	18~56 HRC
Delivery time	2 to 8 weeks ( According to the structure)
Package	Wooden Box or as required
Delivery term	FOB SHEN ZHEN

Applications:

This product is a frame for a electronic part, the precision is high and the part structure is complicate,

many mould slide and inserts in it.

We can customize diverse moulds for our clients based on the 3D drawing they provide, such as the electronic part mould, plastic injection mould, die-casting mould and so on.

Specifications:

1.Quote	According to sample, drawing and specific requirement.
↓
2.Discussion	Mold material, cavity number, price, runner, payment, etc.
↓
3.S/C Signature	Approval for all the items
↓
4. Advance	Pay 50% by T/T
↓
5.Product Design Checking	We check the product design. If some position is not perfect, or can not be done on the mould, we will send customer the report.
↓
6.Mould Design	We make mould design on the basis of confirmed product design, and send to customer for confirmation.
↓
7.Mold Tooling	We start to make mold after mold design confirmed
↓
8.Mold Processing	Send report to customer once each week
↓
9.Mold Testing	Send trial samples and try-out report to customer for confirmation
↓
10. Mold Modification	According to customer’s feedback
↓
11.Balance settlement	50% by T/T after the customer approved the trial sample and mould quality.
↓
12.Delivery	Delivery(mould,3D and 2D drawing ,spare parts) by sea or air. The forwarder can be designated by your side.
