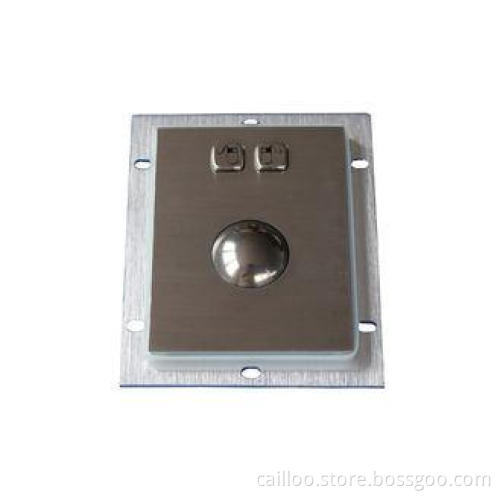

IP65 vandal proof industrial trackball waterproof dirtproof
Special Features:
1. 38.0mm trackball, 2.00mm long key stroke travel
2. Trackball module protected and shielded by stainless steel housing
3. Rear mounting solution.
4. Fast and accurate fixing cursor position.
5. Extreme smooth operation without any noise.
6. 3 optional trackball modules:
Please see below table.
|
Keyboard Style |
Trackball Match |
Interface Available |
Trackball IP Rate |
|
K-TEK-A83-38-MTB |
Keyboard; 400 DPI Mechanical Trackball |
PS/2;USB |
IP65 static |
|
K-TEK-A83-38-OTB |
Keyboard; 800 DPI Optical Trackball |
PS/2;USB |
IP68 dynamic |
|
K-TEK-A83-38-LTB |
Keyboard;1200 DPI Laser Trackball |
PS/2;USB |
IP68 dynamic |
Applications:
This trackball is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
|
ITEM |
SPECIFICATION |
|
|
Mechanical |
Key |
2 keys, quality brushed stainless steel |
|
Key top style |
Protuberant Rectangular Keys, |
|
|
Front Plate |
Quality brushed stainless steel |
|
|
Key Travel |
2.0mm |
|
|
Ball diameter |
38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available) |
|
|
Key switch lifespan |
more than 10 Mio actuations |
|
|
Track ball lifespan |
> 10 Mio revolutions |
|
|
Back Metal Cover |
Rear side integrated electronics protected by a metal cover |
|
|
Actuation Force |
1.0N to 3.0N |
|
|
Mounting Rack |
Aluminum alloy |
|
|
Dimension |
Dimensions with 38mm track ball, Front plate (W x H): 83.0 x 110.0mm, Back panel (W x H ): 107.0 x 134.0mm |
|
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP65 (front panel), NEMA4X, IK09 |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.00W(dynamic) |
|
|
≤0.2W(static) |
||
|
Contact Material |
Gold/Carbon |
|
|
Environmental |
Operating temperature |
-20ºC~+ 60º C |
|
Storage temperature |
- 30ºC~+ 70ºC |
|
|
Operating RH |
30~90% |
|
|
Atmospheric pressure |
60~106Kpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified,IP65,ESD |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
OS is under All windows, Linux, Unix, Mac OS9 / OSX |
|
|
Packing Details |
Each unit to a suitable brown box, suitable brown boxes to a standard export carton. |
|
