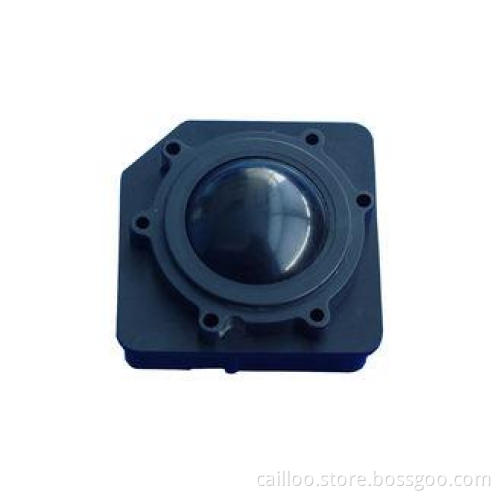

50mm Mechanical Industrial Trackball Module Black For Milit
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Details:
1. IP65 static 50.0mm trackball module with 400DPI resolution..
2. Mechanical Trackball with Harden ball module with adjustable resolutions.
3. CE, FCC, RoHS, IP65, ESD
Descriptions:
IP65 rated 50mm Mechanical Trackball MODULE with adjustable resolutions from low to high for different applications
requirements, military level.
Special Features:
A, Military levelE
B,Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and
computers.
C, Available 38mm, 25mm and 16mm diameter stainless steel or hard phenolic resin ball for smooth, durable operation
and precise cursor positioning.
D, Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while
retaining one-pixel positioning accuracy when the ball is moved slowly.
Applications:
This industrial trackball module is mainly targeted for use for:
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses
E: OTHER INDUSTRIES
Specifications:
|
ITEM |
SPECIFICATION |
|
|
Mechanical Data |
Ball diameter |
50mm/2.00' (16mm, 25mm, 38mm also available) |
|
Track ball lifespan |
> 10 Mio revolutions |
|
|
Actuation Force |
1.0N to 3.0N |
|
|
Dimension |
50.0 mm diameter for ball, 77.50mm x 77.50mm x 31.80mm(front panel) |
|
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP65 (static), NEMA4X |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.00W(dynamic) |
|
|
≤0.2W(static) |
||
|
Environmental |
Operating temperature |
-20ºC~+ 60º C |
|
Storage temperature |
- 30ºC~+ 70ºC |
|
|
Operating RH |
30~90% |
|
|
Atmospheric pressure |
60~106Kpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified, ESD |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
All windows, Linux, Unix, Mac OSX |
|
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
|
