IP65 dynamic rated vandal proof 50mm mechanical industrial
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Details:

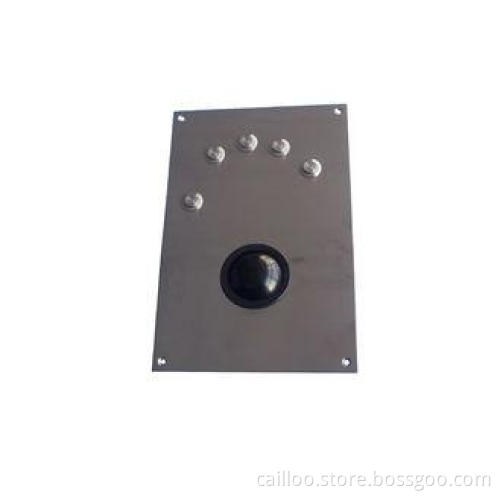

1. IP65 dynamic vandal proof stainless steel industrial mechanical trackball
2. 50.0mm mechanical trackball
3. CE, FCC, RoHS,IP65, ESD
Descriptions:
1. IP65 Vandal proof Stainless Steel Trackball
2. IP65 rated 50mm mechanical trackball module with adjustable resolutions functionalities from low to high to meet different
application requirements
3. Sealed stainless steel 5 mouse buttons, with front panel mounting solutions.
4. Military level.
MAIN FEATURE:
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and
computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
3. Available 50mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.
4. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast
5. Retaining one-pixel positioning accuracy when the ball is moved slowly.
6. can be mounted horizontally, and vertically or any directions.
7. no metal bearings inside, operation is very smooth, and easy without any noise.
Applications:
This trackball is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
|
ITEM |
SPECIFICATION |
|
|
Mechanical |
Key |
3 keys, quality brushed stainless steel |
|
Key top style |
Protuberant Rectangular Keys, |
|
|
Front Plate |
Quality brushed stainless steel |
|
|
Key Travel |
0.45mm |
|
|
Ball diameter |
50.0mm(19mm, 25mm, 36mm 40mm also available) |
|
|
Key switch lifespan |
more than 5 Mio actuations |
|
|
Track ball lifespan |
> 10 Mio revolutions |
|
|
Back Metal Cover |
Rear side integrated electronics protected by a metal cover |
|
|
Actuation Force |
1.0N to 3.0N |
|
|
Mounting Rack |
Aluminum alloy |
|
|
Dimension |
Dimensions with 38mm track ball, Front plate (L x W): 153mmx240mm, |
|
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP65 (front panel), NEMA4X,IK10 |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.00W(dynamic) |
|
|
≤0.2W(static) |
||
|
Contact Material |
Gold/Carbon |
|
|
Environmental |
Operating temperature |
-20ºC~+ 60º C |
|
Storage temperature |
- 30ºC~+ 70ºC |
|
|
Operating RH |
30~90% |
|
|
Atmospheric pressure |
60~106Kpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
OS is under All windows, Linux, Unix, Mac OS9 / OSX |
|
|
Packing Details |
Each unit to a suitable brown box, suitable brown boxes to a standard export carton. |
|
