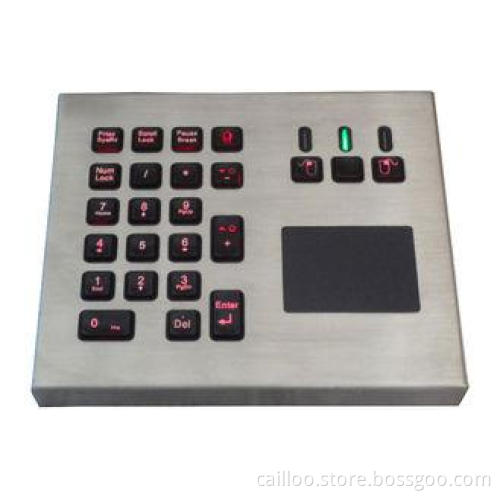

Backlight Vandalproof Industrial Touchpad With Numeric Keypad
Special Features:
1. Industrial level and military level are available.
2. CE,FCC,RoHS,IP65,ESD.
3. USB or PS2 port
4. 24 keys IP65 dynamic sealed & ruggedized tough touchpad.
5. Industrial PCB with carbon-on-gold key switch technology
6. With key stroke 1.50mm and very soft buttons for higher intensity typing.
7. High quality durable black titanium electroplated options.
8. Waterproof,dustproof,vandalproof,etc.
Applications:
1. This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
2. Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions.
3. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism.
Specifications:
MECHANICAL DATA | |
Key | 24 keys |
Key top style | Protuberant rectangular keys. |
Actuator/keys materials | polymer |
Top SS plate | 1.5mm stainless steel plate with super quality durable Black Titanium Electroplated (optional) |
Robust polycarbonate frame | Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing |
Key Size | 11.4mm x 11.4mm for normal keys, |
Key travel | 1.50mm |
Switch life | more than 10 million of operations. |
Lettering | laser-etched or high quality ink print. |
G.W. | 1.0KGs |
Dimensions | 380.0mm x 108.0mm ( L x W ) |
Touchpad cover | Composite |
Lifetime | More than 10 million strokes Mutual Capacitance sensing |
X/Y position sensing resolution | 40 counts/mm |
X/Y position reporting | Relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5 VDC ±0.25V |
Current rating (active mode) | 17 mA |
Switch life | more than 10 million of operations |
ELECTRICAL DATA | |
Supply Voltage | +5V DC +/-5% |
Current Rating | 30mA for keyboard and touchpad without backlight. |
| It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004 |
EMI: | EN 55022: 2010 |
EMS: | EN 55024:2010 |
Lifespan | > 5 years |
Switch Contact Material: | Carbon-on-Gold key switch technology PCB. |
Interface: | PS2, USB available. |
OS: | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20oC to +60oC |
Storage temperature | -30oC to +70oC |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at + 40oC | 21 days, IEC 60512-6 |
Dry heat test at + 85oC | 10 days, IEC 60512-6 |
RELIABILITY | |
Certification | RoHS Compliant, CE and FCC,IP65,ESD |
Protection Level | IP65(front panel) |
Vandal resistant | IK10 |
Key Lifespan | >10 million actuations |
MTBF | >50000H |
MTTR | <30min |
