Special Design Rear Panel Industrial Touchpad , IP65 Sealed
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

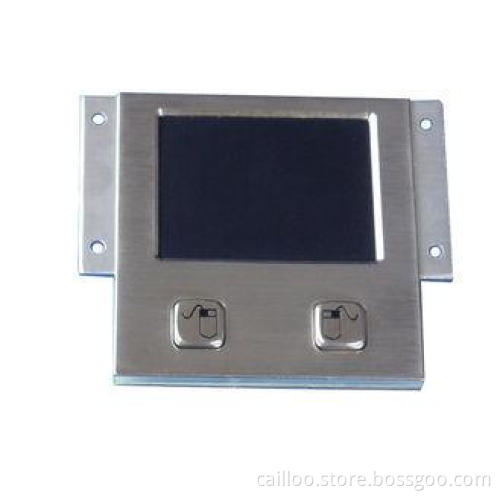

Special Design Rear Panel Industrial Touchpad
Special Features:
1. IP65 Sealed and Ruggedized Touchpad
2. Scroll function optional
3. CE, FCC, RoHS, IP65, ESD
4. IP65 Sealed and Ruggedized Touchpad with scroll function optional
5. Stainless steel housing protects the electronics module
6. Rear panel mounting.
Specifications:
|
ITEM |
SPECIFICATION |
|
|
Mechanical |
Key |
2 keys, quality brushed stainless steel |
|
Key top style |
Protuberant Rectangular Keys, |
|
|
Front Plate |
Quality brushed stainless steel |
|
|
Key Travel |
2.0mm |
|
|
Touchpad thickness |
1.3 mm PCB thickness inclusive of mylar layer |
|
|
Key switch lifespan |
more than 10 Mio actuations |
|
|
Touchpad lifespan |
10 Mio times |
|
|
Back Metal Cover |
Rear side integrated electronics protected by a metal cover |
|
|
Actuation Force |
1.0N to 3.0N |
|
|
Mounting Rack |
Aluminum alloy |
|
|
Dimension |
Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: 83.0mm x 110.0mm (front panel), Rear Mounting Panel: 107.0mm x 134.0mm |
|
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP65 (front panel), NEMA3 |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.00W(dynamic) |
|
|
≤0.2W(static) |
||
|
Contact Material |
Gold/Carbon |
|
|
Environmental |
Operating temperature |
-20ºC~+ 60º C |
|
Storage temperature |
- 30ºC~+ 70ºC |
|
|
Operating RH |
30~90% |
|
|
Atmospheric pressure |
60~106Kpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified,IP65,ESD |
|
MTBF |
>50000h |
|
|
MTTR |
< 30min |
|
|
OS |
OS is under All windows, Linux, Unix, Mac OS9 / OSX |
|
|
Packing Details |
Each unit to a suitable brown box, suitable brown boxes to a standard export carton. |
|
