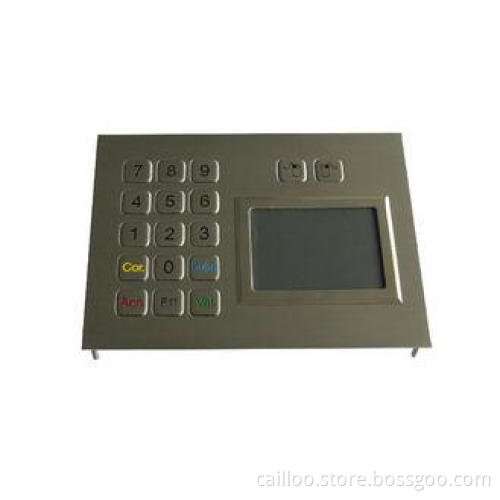

Custom Industrial Touchpad with Short stroke And Robust Buttons
Special Features:
1. Custom keypad layout are warmly welcomed.
2. Top panel mount version.
3. CE,FCC,RoHS,IP65,ESD.
4. IP65 ruggedized touchpad with integrated keypad
5. IP65 dynamic sealed and ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position
6. Extremely robust with 0.45mm short stroke and higher actuation force buttons
7. Industrial metal dome PCB with gold-on-gold key switch technology
8. Stainless steel top plate with threaded bolts for top panel mounting solution.
Specifications:
|
ITEM |
SPECIFICATION |
||
|
Mechanical |
Front Plate |
Quality brushed stainless steel |
|
|
Touchpad thickness |
1.3 mm PCB thickness inclusive of mylar layer |
||
|
Validated touch width |
46.50mm (max) |
||
|
Validated touch length |
62.50mm (max) |
||
|
Mounting Rack |
Aluminum alloy |
||
|
Back Metal Cover |
Rear side integrated electronics protected by a metal cover |
||
|
Touchpad lifespan |
> 10 Mio times |
||
|
Dimensions |
Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: 160.0mm x 125.0mm (front panel), |
||
|
Interface |
PS2 and USB both available |
||
|
Electrical |
Power supply |
5V DC+ 10%, |
|
|
Work current |
4.0 mA (normal) |
||
|
X/Y position sensing resolution: |
1000 points/inch (40 points/mm) |
||
|
X/Y position reporting: |
Relative |
||
|
Tracking speed: |
Maximum 1,016 m/sec |
||
|
Protection level: |
IP65 (front panel) |
||
|
Static Release: |
15 KV (front panel) |
||
|
EMC Standard: |
EN55022(B) |
||
|
Environmental |
Operating temperature: |
-20°C to +60°C |
|
|
Storage temperature: |
- 40°C to + 70°C |
||
|
Operating RH: |
10%-95% |
||
|
Atmospheric pressure: |
60-106Kpa |
||
|
Reliability |
MTBF |
>50000H |
|
|
MTTR |
< 30min |
||
|
Key switch lifespan |
>5 million actuations |
||
|
OS |
OS is under All windows, Linux, Unix, Mac OS9 / OSX |
||
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
||
