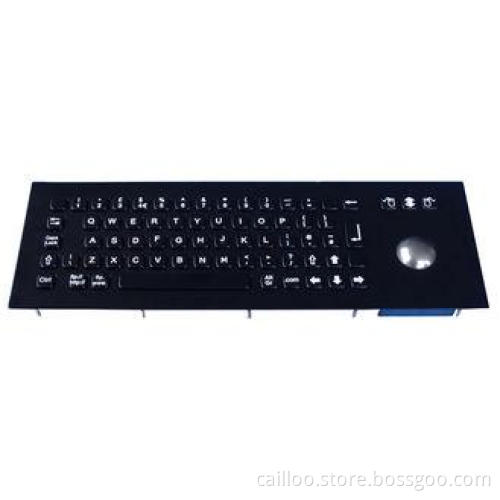

Panel Mounting 69keys Black Metal Keyboards With Trackball

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Panel Mounting 69keys Black Metal Keyboards With Trackball

Special Features:

1. IP65 dynamic rated
2. Vandal proof
3. Stainless steel material
4. 38.0mm trackball, 4 kinds trackball module optional
5. High quality scratch-proof durable black titanium electroplated
6. Top stainless steel plate with threaded bolt for front mounting.
7. With carbon-on-gold key switch technology with long stroke (2.0mm)
8. Ease of customizing with multiple languages
9. USB or PS2 are available

Pls.see below table:

Product Classifications and Descriptions		Interface	Trackball IP rated
K-TEK-A361-MTB-BT	Keyboard; 400 DPI Mechanical Trackball; Adjustable Backlight is optional	USB/PS2	IP65 static
K-TEK-A361-CTB-BT	Keyboard; 400 DPI Chameleon Trackball; (Adjustable seven colors backlight); Adjustable Backlight is optional	USB/PS2	IP65 static
K-TEK-A361-OTB-BT	Keyboard; 800 DPI Optical Trackball; Adjustable Backlight is optional	USB/PS2	IP68 dynamic
K-TEK-A361-LTB-BT	Keyboard; 1200 DPI Laser Trackball; Adjustable Backlight is optional	USB/PS2	IP68 dynamic
Other language versions/interfaces/configuration available on request

Applications:

This durable and black Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

MECHANICAL DATA
Key	69 keys, super quality brushed stainless steel
Key top style	Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar.
Key travel	2.0mm
Tracker ball	38mm (1.5') diameter, ---IP65 static mechanical trackball module with 400 DPI, ---IP65 static chameleon trackball module with 400 DPI, ---IP68 dynamic washable optical trackball module with 800 DPI, ---IP68 dynamic washable laser trackball module with 1200 DPI
Switch life	more than 10 million of operations
Actuation Force	0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point) 1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)
Mounting Rack	Aluminum alloy
Front Plate	Super quality brushed stainless steel
Lettering	Sunk laser legends & characters in high quality ink
Actuator/keys materials	stainless steel
G.W.	1.80KGs
Dimensions	361.0mm x 125.0mm (front panel), 343.0mm x 105.0mm (back panel).

ELECTRICAL DATA
Supply Voltage	+5V DC +/-5%
Current Rating	appr. 20mA
EMC Standard:	It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004
EMI:	EN 55022: 2010
EMS:	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material:	Carbon-on-Gold key switch technology PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20oC to +60oC
Storage temperature	-30oC to +70oC
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at + 40oC	21 days, IEC 60512-6
Dry heat test at + 85oC	10 days, IEC 60512-6

RELIABILITY
Certification	RoHS Compliant, CE and FCC, IP65,ESD
Protection Level	IP65(front panel)
Vandal resistant	IK09
Key Lifespan	>10 million actuations
MTBF	>50000H
MTTR	<30min
