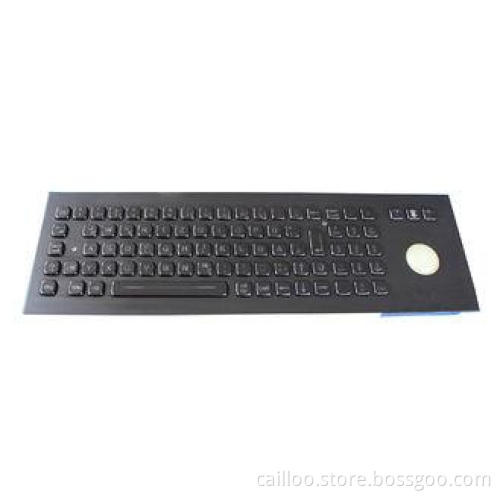

IP65 Dynamic Vandal Proof Black Metal Keyboard With Chemeleon Trackball
Special Features:
1. 83 keys IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with trackball
2. With 38.0mm trackball module
3. High quality scratch-proof durable black titanium electroplated on the top stainless steel plate and all keys
4. Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm)
5.3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling.
6. With top panel mounting solution.
7. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
8. Easily mounting into enclosure or panel,
9. With PS/2 or USB connection output cables that plug directly into the host computer for normal keyboard operations.
10. Optional Trackball Modules,Pls.see below table:
Product Classifications and Descriptions | Interface | Trackball IP rated | |
| Keyboard; | | |
| Keyboard; | | |
| Keyboard; | | |
| Keyboard; | | |
Other language versions/interfaces/configuration available on request | |||
Applications:
This durable and black Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
MECHANICAL DATA | |
Key | 83 keys, super quality brushed stainless steel |
Key top style | Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys, |
Key travel | 2.0mm |
Tracker ball | 38mm (1.5') diameter, |
Switch life | more than 10 million of operations |
Actuation Force | 0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point) |
Front Plate | 1.5mm thickness super quality brushed stainless steel |
Back Plate | 3.0mm thickness brushed and oxidized aluminium |
Lettering | Sunk laser legends & characters in high quality ink |
Actuator/keys materials | stainless steel |
G.W. | 2.30KGs |
Dimension | 400.0mm x 124.0mm (top panel) |
ELECTRICAL DATA | |
Supply Voltage | +5V DC +/-5% |
Current Rating | appr. 20mA |
| It is compliance with the council IEC 61000-4-2:2008; |
EMI: | EN 55022: 2010 |
EMS: | EN 55024:2010 |
Lifespan | > 5 years |
Switch Contact Material: | Carbon-on-Gold key switch technology PCB. |
Interface: | PS2, USB available. |
OS: | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20oC to +60oC |
Storage temperature | -30oC to +70oC |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at + 40oC | 21 days, IEC 60512-6 |
Dry heat test at + 85oC | 10 days, IEC 60512-6 |
RELIABILITY | |
Certification | RoHS Compliant, CE and FCC,IP65,ESD |
Protection Level | IP65(front panel) |
Vandal resistant | IK09 |
Key Lifespan | >10 million actuations |
MTBF | >50000H |
MTTR | <30min |
