Rugged metal waterproof backlit numeric access control outd
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
2,Dust/waterproof,IP65 rate
3,12 illuminated keys
4.Layout customizable

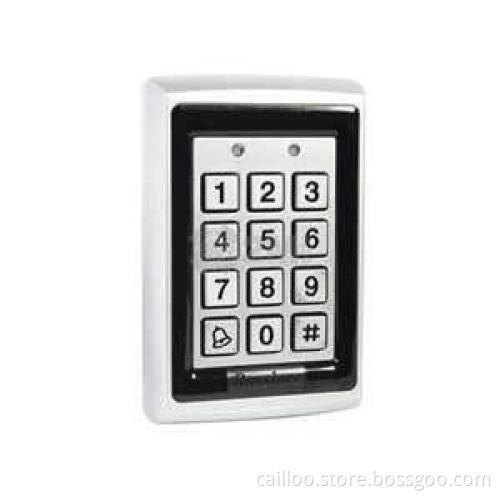

Rugged, water-proof,vandal-proof keypad with 12 back-lit keys, ideal for indoor or ourdoor security/access control device or other low-lit or dark environments
Part Number:MKP72-12BL
Door access keypad with backlit
Key Features:
- 12 full travel and back-lit keys,all keys are in the same size
- Keys in 3 X 4 matrix
- Stamped characters
- Panel mount from the rear side
- Exposed parts(front panel and keys) made of zinc alloy,high resistance against destruction,rust etc
-Vandal-proof
- Layout customizable according to customer’s request
- Application:Door access control system or other application in dark or low-lit environment
Specifications:
Material:Front panel and keys: Zinc Alloy
Life cycle: >5 million operations
Key travel: 2.0mm
Actuation force: 80±15g
Interface: 9-pin
Working temperature: -20°C~60°C
Storage temperature: -40°C~80°C
Relative humility: 20~95%
Atmospheric pressure: 50-110 K Pa
Dimension: 72.00 x 55.80 mm(W x D) (front panel)
