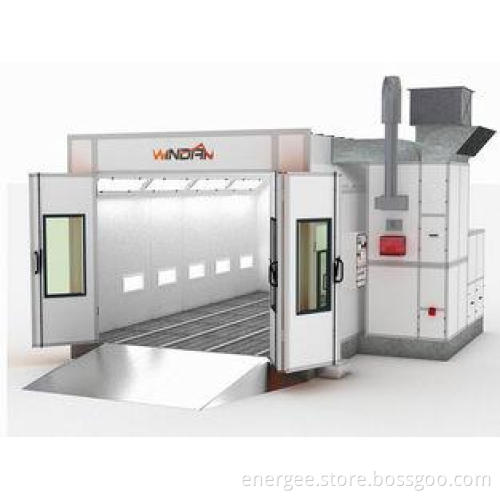

Car painting, Automobile Baking, Portable Auto Spray Booth with European Design WD-60
1.Italian Riello RG5S diesel burner
2.SUS304 Stainless steel heat exchanger
3.Anti-flame and Heat-Insulation
Specification
| Inside Dimension | 6900X4000X2700MM(LXWXH) &22'6''X 13'1''X8'9'' (LXWXH) |
| Outside Dimension | 7000X5600X3500MM(LXWXH)&23'X18'4''X11'5'' (LXWXH) |
| Main door | 3-fold, 3000X2650MM(WXH), aluminium alloy door frame |
| Personal door | 1-fold, 800X2000MM(WXH), with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limit |
| Booth System | Wall panel :EPS(epispastics polystyrene) heat preservation panel double skinned , tongue and groove construction, thickness: 50mm |
| Basement and floor:Adjustable height bolt, complete steel assemble. 5rows of grids. 3pcs of ramps, each size: 900X2000MM(WXL) and with two inclined ramps |
|
| Lighting System | Ceiling light: 4Pcs X10units=40PcsX30W, Lower light: 4Pcs X10units=40PCsX 20W Philip tube, horizontal installation, with electronic ballasts, outside open the light box, according Australia standard design |
| Generator setting type | Back upper intake air, back upper exhaust air, aluminum alloy frame, coated steel |
| Ventilation System | Intake fan: 1Pc double-intake centrifugal fan, , 7.5KW, air capacity:25000m3/h |
| Exhaust fan:1Pc double-intake centrifugal fan, 7.5KW, air capacity:25000m3/h | |
| Heating system | Italian Riello RG5S diesel burner, 260000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional |
| SUS304 Stainless steel heat exchanger, anti-explosion hole for protection, highest temperature 80C, 1pc electric damper from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 90% heat exchanging rate |
|
| Filter system | Prefilter, high efficiency filter(ceiling filter), floor filter, exhaust active carbon filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm, limited-temperature device |
| Total power | 18KW |
