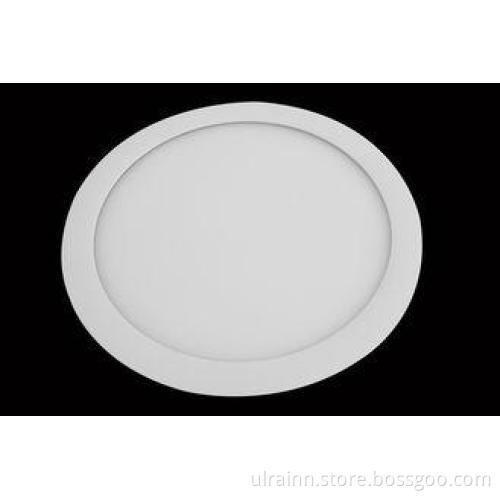

8W 390LM Round SMD LED Panel Light Unique Embedded For Bedroom CE ROHS 60HZ
Quick Detail:
1.Thickness: 11mm ,color temperature for optional
2.Long lifespan:≥50,000 hour
3.LED type: SMD 3014
4. 2 years warranty
5.CE RoHS approved
Dimension
Description:
- Imported LGP , the light guide light rate is 80% above
- Pure aluminum frame, bright silver processing, good heat dissipation, high-grade appearance
- The light even effect and no dark area, efficacy > 70 LM/W
- Isolation constant current power supply, input voltage: AC85-265V, output voltage: DC30-40V, security better
- High efficiency constant current driver can reach more than 90%,PF>0.92
- Unique design, Embedded installation with driver
- Up to 80% energy savings
- CE RoHS certificate
- With 2 Years warranty
Specifications:
|
Parameters |
|
|
Model: |
MB-08D145W-1 |
|
Power: |
8W |
|
Input Voltage: |
AC100~240V |
|
Output Voltage: |
DC30-40V |
|
Frequency Range |
50~60HZ |
|
Power Efficiency |
>85% |
|
Light Source: |
SMD3014 |
|
Lumen: |
390 LM |
|
Color Temperature: |
2700-7000K |
|
Beam Angle: |
120° |
|
Installation |
Embedded |
|
Housing Color |
Sliver |
|
Color rendering index: |
Ra>80 |
|
Dimension: |
Φ145*14mm |
|
OperatingTemp: |
-20℃~55℃ |
|
Storage Temp: |
-25℃ ~ +65℃(25℃best) |
|
Life span |
50000 hours |
|
Net Weight |
0.29KG |
|
Certification |
CE&RoHS |
|
Emitting style: |
side emission |
|
Product materials: |
aluminum alloy +LGP+Import diffuser |
|
Drive type |
External isolation constant current power |
Installation
Competitive Advantage:
Health: Won't cause eye fatigue and helps to protect eye health.
Safety: Won't do harm to body with no harmful substances such as mercury and lead.
High quality: High power factor, constant voltage power supply and constant flux.
Installation flexibility: Easy to installe
Quality assurance
Our service
Delivery
After service
Applications:
Widely used in Airport, Bathroom, Bathroom Room, Bedroom, Cinema, Gallery, Hospital, Meeting Room, Office, School, Shopping Mall, Sitting Room and so on.
