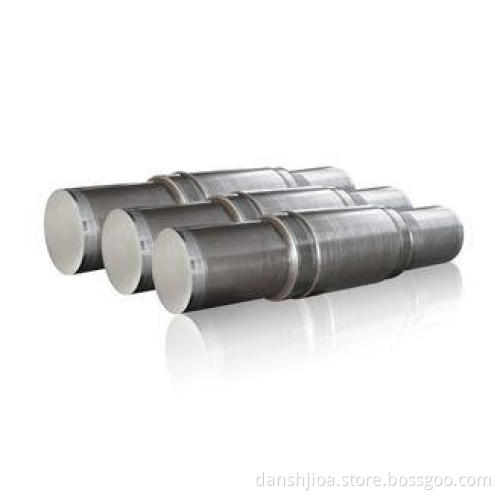

High Tensile Work Roll Heavy Alloy Steel Main Shaft Forging 42CrMo 2000mm OD
Description:
The forged steel shaft-wheel support shaft forging is widely used for cement equipment industry. It conforms to the standard of ASTM, EN, DIN, GB.
The manufacturing equipment is 30~80MN hydraulic press, the forging ratio >4.5, the technical condition is in accordance with the standard of ASTM, EN, DIN, GB.
The product can be provided as per your drawing or specified requirements.
Smelting Process:EF+LF + VDThe process as follow :Ingot →heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT→2nd Heat treatment →finishing machining →Inspection
Applications: The forged steel shaft-wheel support shaft forging is widely used for cement equipment industry.
Specifications:
|
Description |
Forged steel shaft- wheel support shaft forging |
|
material |
Alloy steel (42CrMo, 35CrMo, 20CrMnMo) |
|
Material standard |
ASTM or GB/T3077-1999 |
|
Dimension |
Max.OD: 2000mm Max. Length: 15000mm |
|
Weight |
Max. 250 ton |
|
Smelting Process: |
EF+LF + VD |
|
Process |
Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining →UT →2nd Heat treatment →finishing machining →Inspection |
|
UT standard |
ASTM A388 or EN10228 |
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
