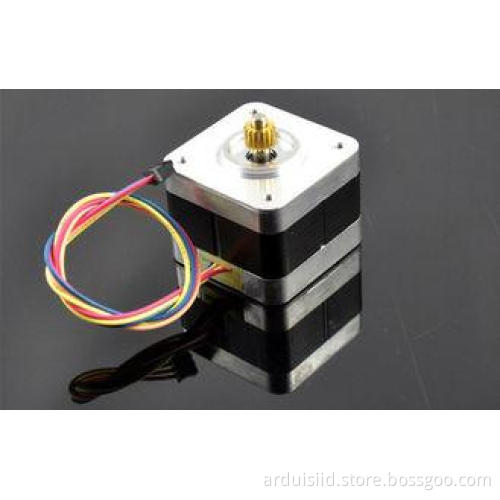

Nema 17 Two Phase Unipolar / Bipolar Stepper Motor , 3D Printer Kits
Quick Detail:
1) High performance and Long life
2) Reasonable Price
3) Customization
Description:
) No MOQ limited
2) Short Lead-Time
3) Quickly response in time
4) Good Pre/After Sales Service
Specifications:
|
Step Angle: |
1.8 Degree |
|
Step Angle Accuracy: |
±5% (full step, no load) |
|
Resistance Accuracy: |
±10% |
|
Inductance Accuracy: |
±20% |
|
Temperature Rise: |
80DegreeC Max. (rated current,2 phase on) |
|
Ambient Temperature: |
-20~+50DegreeC |
|
Insulation Resistance: |
100M(Ohms) Min. ,500VDC |
|
Dielectric Strength: |
500VDC for one minute |
|
Shaft Radial Play: |
0.02Max. (450 g-load) |
|
Shaft Axial Play: |
0.08Max. (450 g-load) |
|
Max. radial force: |
28N (20mm from the flange) |
|
Max. axial force: |
10N |
|
Holding Torque: |
1.7~6.5 Kg.cm |
|
Unipolar or Bipolar |
|
Competitive Advantage:
1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around The Globe.
4. High Quality With Global Standards.
5. 3 year factory warranty
6. Safe shipping way and payment
