Magnetic Rope Detector HRD-100 Steel Rope Ultrasonic Flaw D

Mining rope detector,steel rope flaw detector

Specification

• For inspection of ropes with diameter from 1 to 300 mm (0.04" to 11.8")
• Size 330 x 235 x 190 mm (13" x 9, 3" x 7, 5 ")
• Weight 15 kg (33 lbs)
• Speed along the rope during inspection - from 0 to 6 m/s (0 to 6, 54 yards/s)

Features

• Dual-function: LMA and LF capability
• Speed does not affect readings
• Accurate distance wheel assembly
• Easy to install and re-install
• Easy to handle and fix on the rope
• 3 changeable hall sensor units
• Temperature range -10 +50°C
• PC software control directly, continuously testing rope length more than 10000m
• Power: AC 220V±10%
• Working temperature: -20℃~40℃
• Storage temperature: -40℃~60℃
• Relative humidity:≤90%RH

Typical applications but not limited with:

Inspection of mining ropes, aerial ropeways (mostly ropes of chairlifts and gondola lifts), guy (suspension) ropes of bridges.

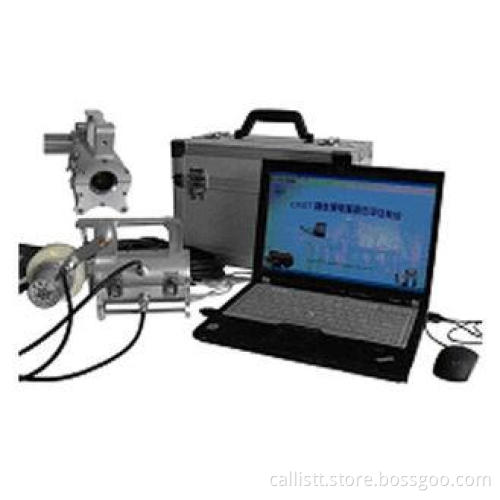

Standard accessories

Probe 1 set Real time alarm 1pc
Signal cable 1pc HRD PC analyse software 1set
laptop 1pc Communication cable 1pc
Charger 1pc Tool 1set
Instruction manual 1set
