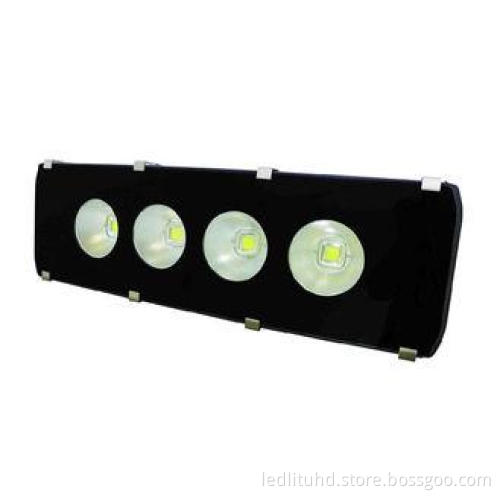

Commercial 200 Watt Tunnel LED Lighting Meanwell Driver , Waterproof Project Light
Quick Detail:
1.200w
2. meanwell driver
3.3Years' Warranty
4.Meet CE, FCC ,RoHS
5.Die-casting aluminum housing
6.Bridgelux LED
Description:
Die-casting aluminum housing,AC85~265V input options,Optical grade diffused lens,Graduated angle scale,Bridgelux LED and Meanwell driver,Low emitted heat,120º beam projection,Up to 70% energy savings,200w power consumption,IP65 Ingress protection,CE, RoHS, FCC compliant,3 Years Warranty
Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
Specifications:
|
Tech Date |
|
|
|
Model |
RM-TFL50W*4 |
|
|
LED Qty |
4pcs |
|
|
LED Type |
Bridgelux |
|
|
LED Power |
200W |
|
|
LED Color |
Warm white, Pure white, Cool white |
|
|
Input Voltage |
AC85~265V |
|
|
Frequency Range |
50Hz – 60Hz |
|
|
Power Factor |
>98 |
|
|
Power Efficiency |
>85% |
|
|
Luminous Efficiency |
70~110LM/W |
|
|
Color Temperature |
WW |
2800-3200K |
|
PW |
4000-4500K |
|
|
CW |
6000-7000K |
|
|
CRI |
WW |
Ra>70 |
|
PW |
Ra>75 |
|
|
CW |
Ra>75 |
|
|
Lamp Efficiency |
>85% |
|
|
Lumens Output |
WW |
18000lm |
|
PW |
19000lm |
|
|
CW |
20000lm |
|
|
Beam Angle |
120° or 50° |
|
|
Working Temperature |
-40℃ ~ +55℃ |
|
|
Storage Temperature |
-25℃ ~ +65℃(25℃best) |
|
|
Life span |
>30000hrs |
|
|
Certification |
CE, RoHS, FCC |
|
|
IP Grade |
IP65 |
|
|
Housing Color |
Black |
|
|
Net Weight |
2.3kgs |
|
|
Dimension |
920*285*120cmmm |
|
|
package |
58*36*29cm (4pcs/box) G.W.: 12.5kgs |
|
Competitive Advantage:
- Health: Won't cause eye fatigue and helps to protect eye health.
- Safety: Won't do harm to body with no harmful substances such as mercury and lead.
- Color rendering: LEDs for floodlight applications have been designed to achieve a warm, white light that ranges >80 on the color rendering index (CRI).
- Color temperature: From 2700K~6500K, customers can choose according to requirements.
- High quality: High power factor, constant voltage power supply and constant flux.
- Installation flexibility: Can be installed in any orientation with no restrictions.
Application scope: Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
Tag:Tunnel light ,Meanwell Driver,Bridgelux chip
