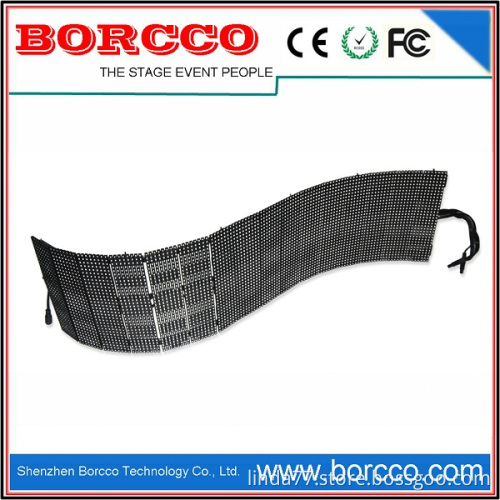

P9.375 Flexible Led Video Screen
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 800 sqm per month |
| Supply Ability: | 800 sqm per month |
| Certificate: | CE ROHS FCC |
Shenzhen P10 Outdoor Led Video Wall, Flexible Led Video Screen, Flexible LED Video Wall for Stage,Dj,Club,Bar,Rental,Events
Flexible LED video screen is used to decorate performance stages with creatives idea or design. The Helix series can be folded or roll up for easy transportation and are used in many mobile screen designs. The screen can withstand strong wind and extreme weather condition.
Parameters of Flexible LED video screen
| Module No. | BH-Helix9.375-32128A |
| Brigtness | > 2,600 nits |
| Pixel pitch | 9.375mm |
| Dot matrix per panel | 32 x 128 |
| Dot pixels per panel | 4,096 |
| Dimension | W300mm x L1,200mm |
| Panel area | 0.36m2 |
| Aspect ratio | 1:4 |
| Panel weight | 3.6 Kg |
| Transparency | 15% |
| Pixel type and configuration | SMD 3528 |
| Protection level | IP65 |
| Dot pixels per sqm | 11,377 |
| Operating temperature range | -30o to 60o |
| Viewing angle | 110o/110o±5o(Vert./ Horz.) |
| Color temperature | 6,500K |
| Coontrast ratio | 1,000:1 |
| Panel material | Plastic |
| Drive mode | 1/4 Scan |
| Minimum viewing distance | 7m |
| Color depth | 16 bit |
| Greyscale(liner)levels | 64k levels per color |
| Refresh rate | 1,920 Hz |
| System type | Computer synchronous |
| Computer video frame rate | 50/60 Hz |
| Power consumption | Max. 600W per square meter |
| Input voltage | AC 90~260V |
| Input power frequency | 50~60 Hz |
| Lifetime(50% brightness) | >80,000 hours |
| Mounting system | Rear hanging |
Features of outdoor LED video wall screen
1. Most flexible --- creative foldable structure, could make any shapes of screen. Like Circle, Wave, Cube, Arch etc.
2. Ultra light weight --- less than 10kg per square meter, the lightest one is only 1kg per panel, bring great convenience for transportation and installation.
3.Super thin --- the thickest is only 30mm per panel, allow be installed in particularly narrow space.
4. Transparency--- unique design of panel, allow the smoking, lighting, laser and sound effects to pass through the screen to make your stage more amazing.
5. Easy installation and dismantling --- quick lock and self-position design, do not need other assistant tools to assemble and disassemble the panels.
6. Protection level: IP65--- can prevent dust and rain from entering can withstand strong winds and extreme weather conditions.
Shenzhen P10 Outdoor Led Video Wall, Flexible Led Video Screen,Flexible LED Video Wall for Stage,Dj,Club,Rental,Events
Application of Flexible LED video screen
LED display are perfect for music concerts, stage, fashion and, trade shows, discos, night clubs, bars, product launches, theme parks, media facades as well as a variety of indoor and outdoor events.
Application of Outdoor LED video wall :
Application of Flexible LED video wall :
Working principle
Shenzhen Borcco Technology Co., Ltd. is a professional company in the manufacturing of LED transparent screen, LED flexible screen,outdoor led video wall, flexible led video wall,stage led screen for concert, LED flexible digital display,etc. Our core R&D is to manufacturing top of the line products and software application for the Performance Stage! We are able to provide the most efficient and innovative solutions for the LED stage & event lighting industry.
Our Products are exported very well to 30 countries all over the world
Pro-sales support
1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer`s specific usage.
After- sales service
1. We promise our customers more than just two years warranty service! We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
2. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
3. We offered training to our customer who includes operating and maintenance of our products.
Borcco product certifications:
In order to offer you a suitable solution, please state general info about your project.
1,Pixel pitch or view distance you need.
2,Dimension
3,Location of installation.
4,Purpose.( what are you going to do with the amazing outdoor Flexible Led Video Wall; Flexible LED Video screen )
5.Rental or fixed installation
Welcome to choose our outdoor Flexible Led Video Wall Flexible LED Video screen !
Please feel free to contact Ms.Linda if you have any questions!
