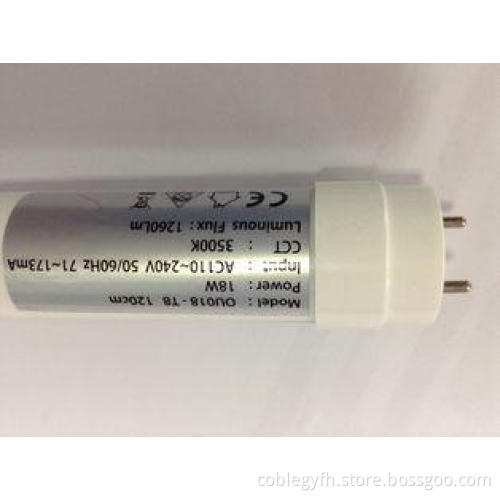

Hotel 18 W T8 Led Tube Light 6 Foot Aluminum Alloy 1200MM
In the underground parking, the light is18w LED T8 tube, it is the 3watts to save energy when no body or
cars enter in the sensor area. if the tube is installed in 3meters height, the sensor diameter is 6meters,
and the beam angle is 120°.when the car enters in the area, the light will be full lighting, and the overtime
is in 30 seconds, then down to 3watts after the man is away from the area.
Quick details:
● No RF interference, no flickering, no humming
● electric wave resistant, Instant start
● can rotate the end cap to be easily installation
● Special view angles LED lighting design
● With heat protection system, can work under unstable voltage
● New inner high efficiency 90% constant current driver
Application
Hotels , Hospitals, Commercial Complexes
Conference / Meeting rooms
Factories & Offices
Residential / Institution Buildings, Schools, Colleges & Universities
Places where need energy saving and high color rendering index lighting
■Mechanical Dimensions
T8 1.2M LED Tube Light
●tube length: L1=1198±1mm
●total length: L2=1212±1mm
●lighting length: L3=1160±1mm
●tube diameter: Φ1=26mm/30MM
●end cap diameter: Φ2=29mm/33MM
●Tube material: Aluminum alloy
●cover material: PC
Specification
|
Input voltage |
AC85~265/50~60HZ |
|
Rated power |
18watts |
|
Min power |
3watts |
|
Color temperature |
5500-6500k(frosted cover) |
|
Cover type |
Frosted/clear/stripe |
|
Base type |
G13 medium Bi-pin |
|
Dimension |
D26*L1200mm |
|
Luminous flux |
1650lm(frosted cover) |
|
Inductive beam angle |
120° |
|
Inductive distance |
6m |
|
Inductive overtime |
25~30s(factory set) |
|
Reaction time |
0.5s |
|
Power factor |
0.95 |
|
Work temperature |
-20℃~55℃ |
Competitive Advantage:
1. Cheap price
2. Use PC cover and aluminum heat radiator for the led lamp to make the light efficiency in best.
3. Stable performance; Uniform luminous, reasonable light distribution, good glare control.
4. Internal power driver in the lamp, light weight and beautifull appearance, easy installation and
maintenance
Induction Sketch
Remark: motion sensor led tube is not workable in the fixture with Cover
Packing detail
|
Parameter |
Value |
Unit |
|
Paper tube |
Φ38 * 1228 |
mm |
|
Carton ( L * W * H ) |
1280 * 260 * 215 |
mm |
|
Quantity per carton |
30 |
paces |
|
N.G per led tube |
354 |
g |
|
N.G per paper tube |
170 |
g |
|
G.W per carton |
18 |
|
Note:
² Don’t take the tube apart
² Recommend indoor use
² The tube must work under the right voltage according
to the specification.
² Can be placed in conventional T8 or T10 fluorescent brackets
(remove starter before replacement !)
² Warning : risk of electric shock! ensure that the power supply is off when wiring sections of
² this device.this device is to be installed by a qualified electrician or technician in accordance
² with all relevant local codes. please read this user guide completely prior to installation and
² please pre-plan the installation.
² Note: please remove Bi-pin shipping protectors from end of tubes prior to installation
Unpacking
² 1. Unpack and carefully examine the product
² 2. Report any damage and save all packing materials if any part is damaged during transport
² 3. Do not attempt to use this apparatus if it is damaged
² Before you start: Installation of your new LED tube is simple, but requires a basic knowledge of
² wiring(as shown below).if you do not feel comfortable with this type of wiring, Sanding LED
² would recommend consulting a qualified electrician.
Note: please ensure that power is disconnected from fitting before installing LED tube
