850nm infrared Analog Hidden CCTV Mini Camera with 55 degre
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

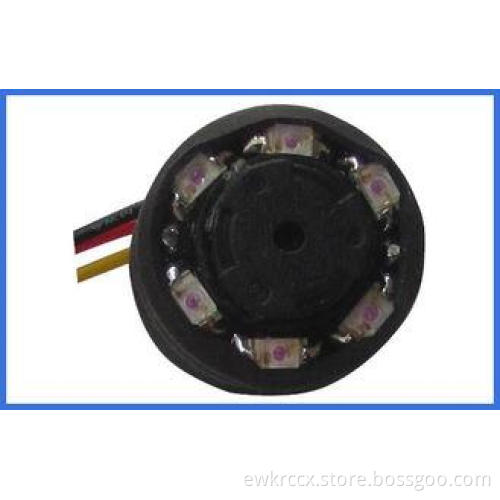

850nm infrared Analog Hidden CCTV Mini Camera with 55 degree View angle
Quick Detail:
1. Model Number: ZBSV6-IR85
2. Brand Name: ZHIBOSEN
3. Type: CCTV Mini camera
4. Imaging device: 1/3 CMOS
5. System format: PAL or NTSC
6. View angle: 55 degrees
6. Pixel: 520TVL
7. Place of Origin: Guangdong China
8. Gross Weight: 0.02kg
9. Package Size: 13x8x7cm
Description:
Using third generation CMOS sensor + DSP digital chip synthesis technology, 850nm/5m infrared light night vision, high-definition picture quality and tiny size of 520 line design. Suitable for industrial equipment, pipes, car repair and micro security field.
1. Easy to install in a small size and a small space in small pipes;
2. Is light weight, can be conducted without damage to the surface installation;
3. High resolution, high sensitivity and high signal to noise ratio;
4. dual-mode automatic switching day and night;
5. Low-light, high-definition video recording function;
6. Low current low power consumption;
7. 4th generation CMOS sensor + DSP digital chip synthesis technology, image clarity without distortion;
8. 850nm infrared light, clear visual range 5m.
1. Easy to install in a small size and a small space in small pipes;
2. Is light weight, can be conducted without damage to the surface installation;
3. High resolution, high sensitivity and high signal to noise ratio;
4. dual-mode automatic switching day and night;
5. Low-light, high-definition video recording function;
6. Low current low power consumption;
7. 4th generation CMOS sensor + DSP digital chip synthesis technology, image clarity without distortion;
8. 850nm infrared light, clear visual range 5m.
Applications:
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Specifications :
|
IR
|
850nm / 5M
|
| Imaging device | 1/3 CMOS image sensor |
| System format | NTSC/PAL |
| Total pixels image | NTSC: 656 (H) x492 (V)/PAL: 786 (H) x576 (V) |
| Image Sensor Size | 4.75mm (H) x3.55 (V) |
| Horizontal resolution | 520TVL Lines |
| Illumination | 0.008Lux/F1.2 |
| Lens & Perspective | 0.5mm F2.0/55 ° |
| SNR | More than 48dB |
| AGC | OUT |
| Self-balancing control | OUT |
| BLC | OUT |
| Screen output | 1.0V p-p/75 Ohm |
| Dimensions (D x H) | 14.5x15.5m |
| Weight (grams) | 3 g |
| Electric current | 75mA |
| Power supply | DC3.3V-6V |
| Ambient temperature | -20 ° C-+50 ° C, relative humidity 85% |
| Cable Wiring | PIN1-Red DC5V, PIN2-Black GND, PIN3-Yellow VIDEO OUT PIN4-White AUDIO OUT |
Competitive advantages:
good price, reliable quality, guarantee of delivery,good services
