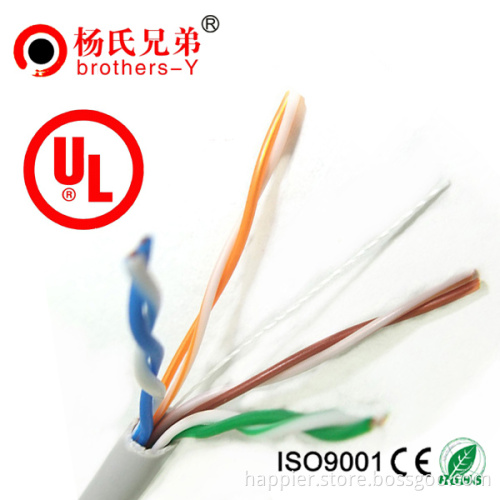

lan cable cat5e cat6 utp ftp sftp
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 200 Piece/Pieces
- Min. Order:
- 200 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 1000000 Piece/Pieces per Week |
| Supply Ability: | 1000000 Piece/Pieces per Week 305m/roll |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | UL,CCC,CE,ROHS,SGS,ISO |
| Transportation: | Ocean,Land,Air |
Quick Details
|
Place of Origin: |
Guangdong China (Mainland) |
Brand Name: |
Brothers-Y |
Model Number: |
Network cable |
|
Type: |
Cat 5e |
Number of Conductors: |
8 |
conductor: |
solid/strended wire |
|
pacing length: |
305m/roll |
jacket material: |
PVC |
insulation: |
PE |
|
package: |
carton,pp bag |
sale mode: |
factory sale |
shielded: |
your choice |
|
CE,UL,ROHS: |
YES |
Usage: |
10-15years |
OEM: |
YES |
Packaging & Delivery
|
Packaging Detail: |
305m packed in paper box ,3 boxes packed in carton. |
|
Delivery Detail: |
About 10 days after receiving the deposit |
Specifications
Lan cable ,cat5e cable ,utp cable from China
1.Cu/CCA/CA/CCS conductor
2.PE /PVC jacket
3.Best price&Good quality
4.OEM
Lan cable ,cat5e cable ,utp cable from China
Structure:
Conductor: Solid/stranded wire CU/CCA/CCS
AWG: 23AWG(24AWG,26AWG)
Twisted pair: 4
Insulation: PE
Shield: Pe-Tape + Al foil
Drain wire: Tinned Copper
Braid: Tinned Copper
Jacket: PVC
Rip cord: Yes
Center Splitter: Yes
Rated Temperature: 60cF, 75 cF, (140 TF, 167 TF)
Electrical Characteristic:
Impedance (ohms): 100 ohm+/- 15 ohm
DC Rersistance: <=6.58Ω/100M
Resistance imbalance: <=2.5%
Insulation resistance: 5000MΩ.KM
Standard:
TIA/EIA 568A/568B IEEE802.3U/IEEE 802.5 ISO 11801 EN50173
Flame resistance level:
CMX. CM, MP, CMG, MPG, CMR, MPR
Application:
Etherrnet,10 Base-T,100Base-T4,ATM,
TP-PMD seppch,Telephone,Multimedia,Trunk Wiring
The details of CAT-5e:
|
Cat5 |
Material (28AWG=0.4MM 26AWG=0.45MM 24AWG=0.5MM) |
package 305m |
Works(datapass) |
Weight (KG) |
|
|
0.38mm cca+ 0.35mm ccs (special price ) |
1000ft/box |
80m |
5.2 |
||
|
0.4mm cca+0.35mm ccs (special price ) |
1000ft/box |
100m |
5.4 |
||
|
0.4mm |
CA |
1000ft/box |
95m |
5.4 |
|
|
0.5mm |
CA |
1000ft/box |
115m |
5.9 |
|
|
0.4mm |
CCA+CCS |
1000ft/box |
90m |
5.8 |
|
|
0.45mm |
CCA+CCS |
1000ft/box |
100m |
6.0 |
|
|
0.5mm |
CCA+CCS |
1000ft/box |
110m |
6.2 |
|
|
0.4mm |
CCA |
1000ft/box |
100m |
6.1 |
|
|
0.45mm |
CCA |
1000ft/box |
110m |
6.5 |
|
|
0.5mm |
CCA |
1000ft/box |
120m |
6.9 |
|
|
0.4mm special price |
CCAU+CCS |
1000ft/box |
140m |
7.05 |
|
|
0.5mm |
CCAU+CCS |
1000ft/box |
160m |
8.65 |
|
|
0.35mm |
copper |
1000ft/box |
130m |
6.8 |
|
|
0.4mm |
Copper |
1000ft/box |
140m |
7.1 |
|
|
0.45mm |
Copper |
1000ft/box |
150m |
7.9 |
|
|
0.5mm |
Copper |
1000ft/box |
160m |
8.7 |
|
|
|
|
|
|
|
|
Packing
1.packing lengths
305m/ roll
Other lengths available according client's request
2.Inner packing:wooden rell,plactic rell,and paper rell available
3.Outer packing:carton box,pull out box,pallet available
4.Other packing available according to client's request
