Profibus DP V0 Protocol Inverter Accessories For HD700 Drives
Quick Detail:
- operate sensors
- actuators via a centralized controller in production (factory) automation applications
- a fieldbus Solutions Module
- installed to the expansion slot(s) in HD700 drives to provide PROFIBUS-DP slave connectivity
- suitable for HD700 drives
- the control panel software version is V1.04 and above
- the control panel software version is below V1.04, menu P19 parameters are not seen
Description:
PROFIBUS-DP (Decentralized Peripherals) is used to operate sensors and actuators via a centralized controller in production (factory) automation applications.

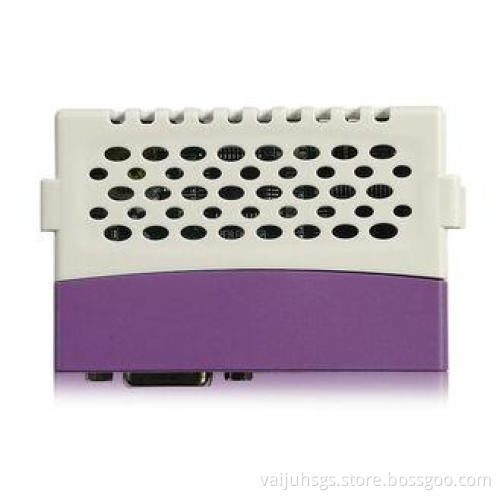

The HDOM-Profibus-V0 is a fieldbus Solutions Module that can be installed to the expansion slot(s) in HD700 drives to provide PROFIBUS-DP slave connectivity.
The HDOM-Profibus-V0 module is suitable for HD700 drives that the control panel software version is V1.04 and above. The drives that the control panel software version is below V1.04, menu P19 parameters are not seen.
Specifications:
1. Data rate and range
HDOM-Profibus-V0 automatically detects and adapts the data rate. Supported data rates (kbits/s) and range as follows:
|
Rate (kbit/s) |
12000 |
6000 |
3000 |
1500 |
500 |
187.5 |
93.75 |
45.45 |
19.2 |
9.6 |
|
Range (m) |
100 |
100 |
100 |
200 |
400 |
1000 |
1000 |
1000 |
1000 |
1000 |
Table 1-1 Data rate and range
2. Support five types of PPO (Parameter Process data Object PPO1-PPO5) data format.
3. Support Profibus DP V0 protocol.
The HDOM-Profibus-V0 is powered from the host drive’s internal power supply. The module output meets SELV safety level.
