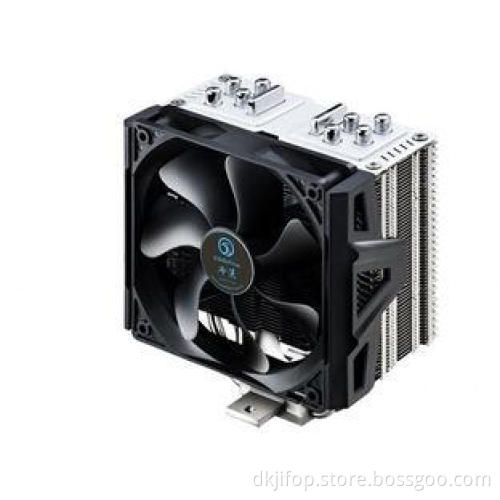

Black DC CPU Cooling Fan 120*120*25mm / Intel AMD Socket Cooler Fan
Quick Detail:
|
Products Name:: |
CPU cooler |
Brand Name |
CoolFlow |
Model No.: |
CF-CHP01 |
|
Application |
Intel® LGA 2011/1366/1156/1155/775 AMD FM1/AM3+/A M3/AM2+/AM2 |
:Material |
Copper Base / 1 Vapor Chamber Copper Base / 1 Vapor Chamber Fins |
Type |
Single Fans |
|
Place of Origin: |
China |
Color |
black |
Weight |
762g |
|
Speed: |
600 ~ 2,000 RPM (PWM) ± 10% |
Fan size |
120X120X25mm |
Product size |
145 x 97 x161.6 mm |
|
Voltage: |
DC 12V |
Rated current |
|
Air Flow |
24.9 ~ 82.9 CFM ± 10% |
|
noise level: |
9~ 36dBA(Min.) |
Power Output |
|
Certificate |
UL,CUL,CE.RoHS |
Description:
CoolFlow CF-CHP01 is the next generation of CPU cooler thanks to new vertical vapor chamber technology combined with four 6mm heat pipes. A nickel plated, pure polished copper base spreads heat into a tall, aluminum alloy heat sink ensuring optimal cooling.
Features:
- The CF-CHP01 uses 2 separate cooling technologies to transfer heat – heat pipes and vertical vapor chambers.
- 100% pure polished copper base – combined with improved soldering technologies for the best thermal transfer.
- Special fin design – heatsink receives concentrated cold airflow.
- Slim heatsink provides great compatibility for overclocking memory modules with tall heat spreader.
- Clip-on fan mounting bracket
Applications:
Intel Socket:
LGA 2011/1366/1156/1155/1150/775
AMD Socket:
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Specifications
|
Model |
CF-CHP01 |
|
CPU Socket |
Intel Socket: |
|
Dimension |
145 x 97 x 161.6 mm / 5.7 x 3.8 x 6.4 inch |
|
Heat Sink Dimensions |
134 x 85 x 161.6 mm /5.3 x 3.4 x 6.4 inch |
|
Heat Sink Material |
Copper Base / 1 Vapor Chamber/ 4 Heatpipes / Aluminum Fins |
|
Heat Sink Weight |
640g / 1.4 lbs |
|
Heat Pipes Dimensions |
ø6mm |
|
Fan Dimension |
120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
|
Fan Speed |
600 ~ 2,000 RPM (PWM) ± 10% |
|
Fan Airflow |
24.9 ~ 82.9 CFM ± 10% |
|
Fan Air Pressure |
0.3 ~ 2.7 mm H2O ± 10% |
|
Fan Life Expectancy |
40,000 hrs |
|
Fan Noise Level |
9~36 dBA |
|
Bearing Type |
Rifle Bearing |
|
Connector |
4-pin |
|
Fan Weight |
122g / 0.26 lbs |
|
Weight |
762g / 1.7 lbs |
|
Note |
* Supplied accessories may differ by country or area. Please check with your local distributor for further details. |
