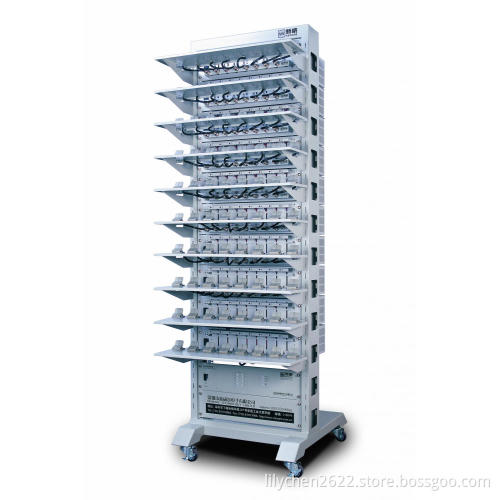

Battery Testing Equipment BTS-5V3A

Basic Technical Specification (CT3008W-5V3A)

Description Parameters
Working temperature 0℃ ~ 40℃
Storage Temperature -10℃ ~ 50℃
Operating humidity 30% ~ 80% RH(Non-condensing)
Storage humidity 30% ~ 90% RH(Non-condensing)
AC Input AC 220 V ±10% / 50 Hz
Input power 224W
Resolution AD:16bit;DA:12bit;
Input impedance ≥1MΩ
Voltage Output per channel Charge : 10 mV ~ 5V ; discharge : 2.5V ~ 5V
Precision ± 0.1% of FS
Stability ± 0.1% of FS
Current Output per channel Charge : 6 mA ~ 3 A ; discharge : 6 mA ~ 3 A
Precision ±0.1% of FS
Stability ±0.1% of FS
Power Power per channel 15W
Stability ±0.2% of FS
Time Rise time 20 ms (0 to 3A)
Step time ≤ (365 * 24 ) hour/step ;time format: 00:00:00 (h, min, s)
Data record Intervals Time Δt:(1 ~60000S)
VoltageΔV:(10mV - 5V)
CurrentΔI:(6mA-3A)
Frequency 1Hz
Charge Charging modes CCC,CVC,CC&CVC
Cut-off conditions Voltage, Current, Time & Capacity

Discharge Mode CCD&CPD
Cut-off conditions: Voltage, Current, Time & Capacity

Cycle Cycles 65535
Steps 63
Nested function Max three levels of loops
Protection Software ● Power-off Data Protection
● User-defined safety(tolerance of current ,voltage and delay time)

Channel Features Independent double closed-loop for Constant Current Source and Constant Voltage Source
Channel controlled mode Independent control
Detection and Sampling 4- wire connecting
Noise <85dB
Communication Means RS232
Data output mode EXCEL.TXT.the chart
Communication interface: Serial Port
Holder Universal Holder
Number of Channels per Cabinet: 8
Cabinet dimensions(W*D*H) 3U ,480*330*130(mm)
