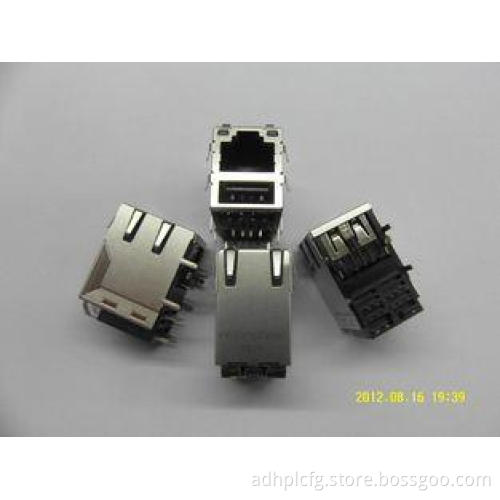

RJ45 Single Port , 10/100base-T 1-Port Tab Up RJ45 With single USB ,RJ45 receiver filter
P/N:KRJ-21USBNL
Descriptions:
- 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with single USB
- Single port 1X1 Tab-Up RJ45 with internal magnetics
- Internal magnetics are 100% electrically tested for HI-POT and functionality
- 350uHminimum OCL with 8mA bias current
- High performance for maximum EMI suppression
- Minimum 1500Vrms isolation per IEEE 802.3 requirement
- ROHS-6 peak wave solder temperature rating 260℃
- Operating temperarure range :0℃ to +70℃
- Storage temperature range :-40℃ to +85℃
- Number of positions:10
- Number of contacts loaded:8
- Shield:YES
- Rohs compliant
- Length:29.0mm
- LEDS:YES
- EMI fingers:YES
- LEFT:Green,RIGHT:Yellow
- Usage:KRJ-21USBNL
Applications:
• Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,
IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,
DSL/ADSL and so on
Mechanical Dimensions:(UNIT:mm)
.XX Tolerance:+/-0.25
.XXX Tolerance:+/-0.13
PCB Layout Mouting Hole:(UNIT:mm)
.XX Tolerance:+/-0.25
.XXX Tolerance:+/-0.13
Electrical Specifications:
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
30-60MHZ -14.0dBmin
60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
30-60MHZ -35.0dBmin
60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH @100KHZ 100Mv 8mA DC
Schematic:
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages
